How to Tune Your CB Antenna for Low SWR and Better Performance
Tuning a CB antenna is the process of adjusting the antenna so your radio system operates efficiently across the CB band. The goal is to lower your SWR, or standing wave ratio, so the radio can transmit properly and the antenna system performs as intended.
If your CB radio does not have a built-in SWR meter, you can still tune it with an external inline SWR meter and a jumper cable. Once connected, you will take readings on channel 1 and channel 40, compare them, and adjust the antenna length accordingly.
What you need to tune a CB antenna
-
CB radio
-
CB antenna system already installed
-
External SWR meter if your radio does not include one, some great options are
-
Short jumper coax cable to connect the meter to the radio
-
An adjustable antenna or tunable tip if your antenna supports tuning
Some compact CB radios do not include an SWR meter, so an external meter is necessary. In that setup, the meter is placed in line between the radio and the antenna.
Why tuning your CB antenna matters
A poorly tuned antenna can lead to high SWR readings, reduced performance, and inconsistent operation across channels. Tuning helps balance the antenna so readings stay low from one end of the CB band to the other.
The practical target is simple:
-
Get the SWR below 2
-
Make readings on channel 1 and channel 40 as close as possible
When those end-of-band readings are close, the middle channels should also have solid SWR.
Before you start, choose the right location
Take SWR readings in an open space. Avoid nearby objects that can affect radio frequency behavior and skew your measurements.
Try to stay away from:
-
Buildings
-
Large structures
-
Power lines
-
Anything else close to the antenna that could influence RF
This step is easy to overlook, but it matters. A clean testing area gives you more reliable SWR readings.

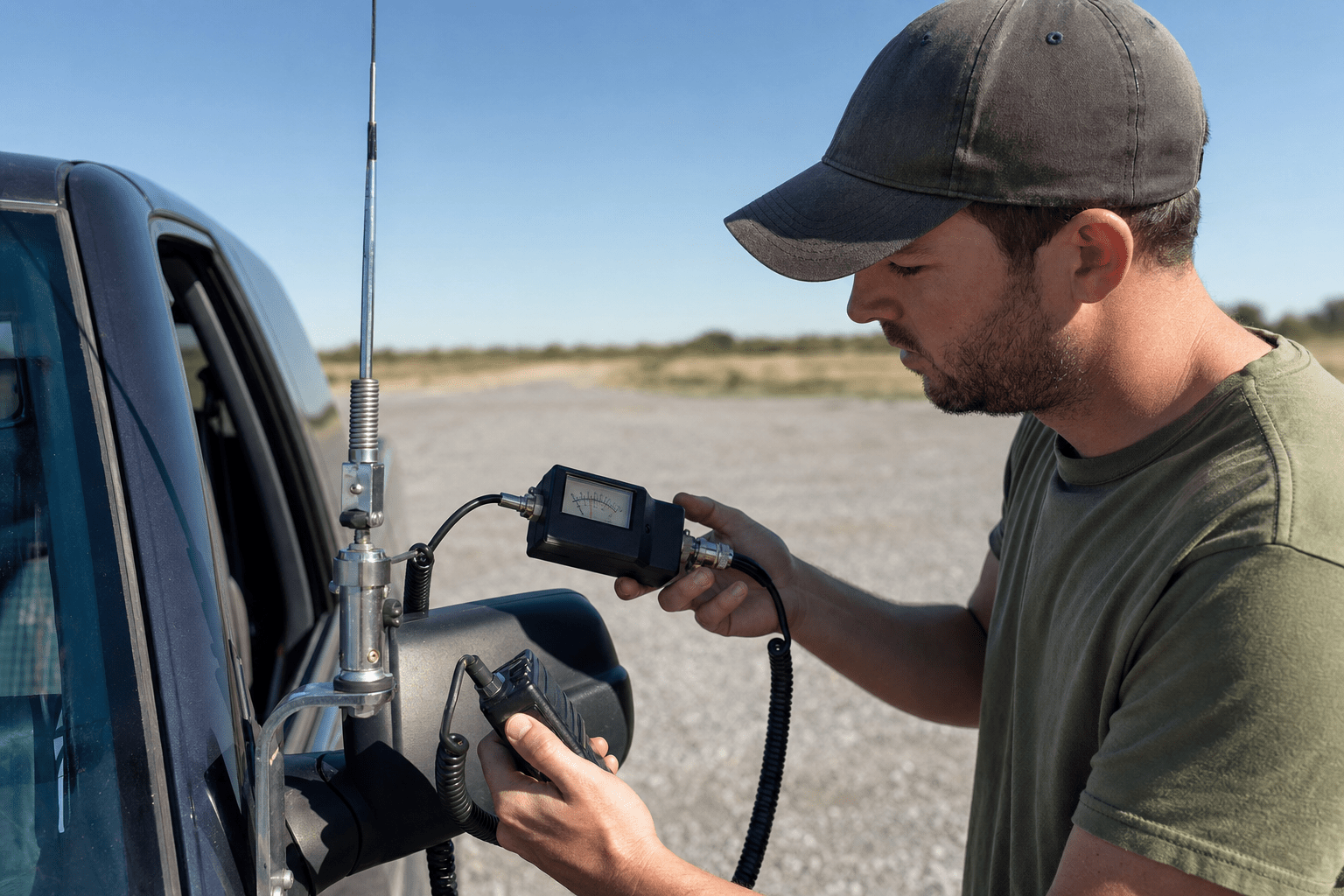

How to connect an external SWR meter to a CB radio
Most inline SWR meters have two labeled ports:
-
Radio
-
Antenna or ANT
To install the meter correctly:
-
Disconnect the antenna coax from the back of the CB radio.
-
Connect the antenna coax to the SWR meter port labeled ANT or Antenna.
-
Connect the jumper cable to the SWR meter port labeled Radio.
-
Connect the other end of the jumper cable to the antenna connection on the back of the CB radio.
-
Tighten all coax connections securely so you get an accurate reading.
At that point, the meter is installed inline and ready to test.
How to measure SWR on a CB antenna
Step 1: Set the radio to channel 1
Turn on the radio and switch to channel 1.
Step 2: Set the meter to FWD
Put the SWR meter in the FWD position.
Step 3: Key the microphone and calibrate
Press the microphone transmit button. While holding it, use the meter's calibration knob to move the needle to the SET mark.
Step 4: Switch to REF and read SWR
After calibration, flip the meter to REF or reflection and read the SWR value.
Step 5: Repeat on channel 40
Move the radio to channel 40 and repeat the same process:
-
Set meter to FWD
-
Key the microphone
-
Calibrate to the SET line
-
Switch to REF
-
Read the SWR
Always compare channel 1 and channel 40. Those two readings tell you whether the antenna is too short, too long, or close to correct.
How to interpret CB antenna SWR readings
The relationship between the two end channels is the key to tuning.
If SWR is higher on channel 1 than on channel 40
Your antenna is too short. You need to lengthen it.
If SWR is higher on channel 40 than on channel 1
Your antenna is too long. You need to shorten it.
If channel 1 and channel 40 are close to equal
Your antenna is tuned well across the band. That usually means the middle channels will also have good SWR.
How to adjust the antenna length
Make small changes, then retest. If your antenna has a tunable tip, raise or lower it slightly depending on what the readings show.
Use this simple rule:
-
Higher SWR on channel 1 = lengthen the antenna
-
Higher SWR on channel 40 = shorten the antenna
After every adjustment, go back and measure channel 1 and channel 40 again. Continue until both are reasonably close and below 2 if possible.
Example of reading and correcting SWR
Suppose your first measurements look like this:
-
Channel 1: 2.0
-
Channel 40: 1.5
Because channel 1 is higher, the antenna is too short. The correct move is to lengthen the antenna slightly.
After adjusting, your readings might improve to something like:
-
Channel 1: about 1.5
-
Channel 40: about 1.65
Those values are both under 2 and fairly close together, which indicates a good tune across the CB band.
What is a good SWR for a CB antenna?
For practical CB setup, a good target is:
-
Under 2.0 on both channel 1 and channel 40
-
As equal as possible between those two channels
You are not just chasing the lowest single number on one channel. The better goal is a balanced reading across the band.
Common mistakes when tuning a CB antenna
Testing near structures
Nearby buildings, power lines, and other large objects can affect RF and raise SWR readings.
Connecting the meter backwards
The antenna coax must go to the port labeled ANT, and the jumper cable to the port labeled Radio.
Skipping calibration
On a manual SWR meter, you must calibrate in FWD before switching to REF for the actual reading.
Making large antenna adjustments
Small changes are easier to control and easier to interpret.
Focusing on only one channel
Channel 1 and channel 40 must both be checked. One reading alone does not tell you whether the antenna is too long or too short.
Quick CB antenna tuning checklist
-
Park in an open area
-
Install the SWR meter inline between the radio and antenna
-
Set the radio to channel 1
-
Set the meter to FWD
-
Key the mic and calibrate to the SET mark
-
Switch to REF and record the SWR
-
Repeat on channel 40
-
Lengthen the antenna if channel 1 is higher
-
Shorten the antenna if channel 40 is higher
-
Repeat until both readings are below 2 and close together
When your tuning is done
Your tuning is in a good place when:
-
SWR is below 2
-
Readings on channel 1 and channel 40 are close
-
The antenna no longer clearly needs to be lengthened or shortened
That usually means the system should have good SWR across the rest of the CB channels too.
FAQ
Do I need an SWR meter to tune a CB antenna?
Yes, if your radio does not have a built-in SWR function. An external inline SWR meter and jumper cable let you measure SWR and tune the antenna correctly.
What channels should I use to tune a CB antenna?
Use channel 1 and channel 40. Comparing the SWR at both ends of the band tells you whether the antenna is too short or too long.
If SWR is higher on channel 1, what does that mean?
It means the antenna is too short and should be lengthened.
If SWR is higher on channel 40, what should I do?
That means the antenna is too long and should be shortened.
What is a good SWR reading for CB?
A practical target is under 2.0, with readings on channel 1 and channel 40 as close to each other as possible.
Why should I tune in an open area?
Nearby buildings, structures, and power lines can affect RF and distort your SWR readings. An open area gives more reliable results.
Bottom line
To tune your CB antenna, connect an SWR meter inline, test on channel 1 and channel 40, and adjust the antenna length based on which channel reads higher. Higher on channel 1 means lengthen it. Higher on channel 40 means shorten it. Keep testing until both readings are below 2 and close together for balanced performance across the CB band.
