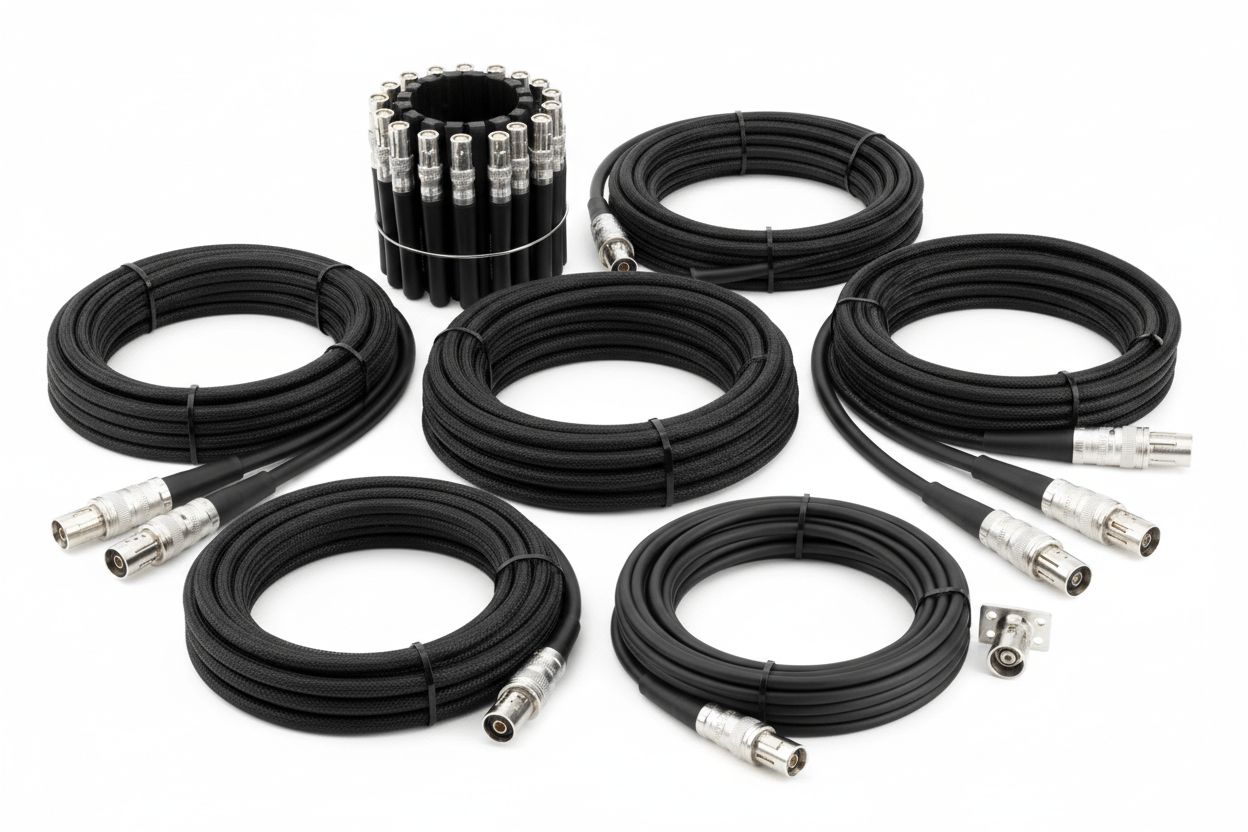

Choosing the Right Coax Cables for CB Radios

When it comes to CB radios, the weakest link in your communication system is the one that makes it work. The coaxial cable is usually the issue. It can make a big difference to know which coax cable is best for your setup. Let's divide it up into smaller parts so you can make smart choices that will save you time and money in the long run.

Getting to Know the Basics of Coaxial Cable

Coaxial cables or coax for short are the unsung heroes of communication. If you want to send a signal over a long distance you need a coax cable. They are used a lot not just in CB radios but also in cable TV and internet connections. There is insulation around the central conductor a metal shield that keeps interference out and another layer of insulation on the outside.

For CB radios the most common types of coax cable are RG 58 and RG 8X. Both types have their pros and cons. Because RG 58 is thinner it is more flexible and easier to move around. RG 8X is a little thicker but it loses less signal which could be very important depending on how you set it up.

But here's the thing not all CB setups are the same. The kind of cable you choose will depend a lot on your CB radio and how you plan to use it. A short cable for talking to people in your area will need different things than a long cable for talking to people across the country.

Why the power rating and installation are important

Power is a very important part of CB radios so let's talk about it. The coax cable's power rating tells you how much output power it can handle before the signal starts to break down or the cable gets damaged. Most of the time CB radios in the US only need 4 watts of AM power (or 12 watts of PEP for SSB). Some fans on the other hand use amplifiers which can greatly increase power needs and require cables with higher ratings.

What do you care? Well if you go over the power rating of your coax it can get too hot which can melt the cable or make it stop working altogether. Not a good situation especially if you're far from home or don't have a backup.

After you pick out a coax with the right power rating the next step is to install it. A good installation will make sure that your cable lasts for a long time. Smooth out the bends. Sharp angles can break the internal structures which makes them less effective. Don't run the cable next to power lines or other things that could mess with the electricity. These can make your signal louder which makes it hard to hear.

How to Measure Length and Its Effect

You're not just choosing a cable you're also choosing how well your CB radio can talk to the outside world. This dance is very important because of how long the cable is. The signal could get lost if the cable is too long. You won't be able to put your radio and antenna where you want them if it's too short.

Let's break this down. It's harder to work with longer coax cables. It feels like talking to a friend across the room. You have to shout louder as the room gets bigger and eventually you can't hear them at all. As we said before longer cables also make the signal weaker which is called "attenuation."

The good news? A 20 foot coax cable is long enough for most common CB radio uses like in a car or small home setup. This lets you move around and set up without hurting the signal too much. But if you need more length like for a truck or a base station it's important to get a good coax.

How shielding affects performance

Have you ever heard static on the radio and wondered what it was? Most of the time it's just noise. Other electronic devices or the environment can get in the way and make your CB radio work less well. That's when shielding comes in.

Shielding keeps noise from the outside from getting to the inner conductor just like sunglasses keep glare from getting to your eyes. Most of the time coaxial cables have a braided copper shield aluminum foil or both. A good shield will keep most unwanted signals from getting through to your CB radio which will keep your communication line clear.

"Shield coverage" means It shows you what percentage of the internal cable is covered by the shield. More coverage usually means better protection against interference but it can also make the cable stiffer and harder to work with.

Testing and Maintenance The Unseen Heroes

Good! Your coax cable is set up correctly. But how can you be sure that it is really working? Now testing and maintenance are your best friends.

After you set up your coax cable you should test it to make sure you did it right. The SWR meter or Standing Wave Ratio is a helpful tool. It tells you how well your transmission system is working by showing you how much of your signal is getting through. Your signal is getting through if your SWR meter shows 1 A reading of 5 1 or lower is also fine for most CB setups.

Routine maintenance is not only about making sure everything works it's also about extending the life of your system. You should check your coax cable for damage every so often. Look for cracks or signs of wear on the connectors and cable and keep an eye out for kinks or bends that don't need to be there.

You can avoid problems later on by doing small things like keeping water away from cable connections. When water gets on something it can cause corrosion which is a sneaky enemy of performance.

Watch how your cable works in different seasons and places. Think of this as a way to save money and make it easier to talk to each other.

Regular testing and maintenance will help your coax cable work at its best when you need it. You can find more information on how to test and take care of your equipment at QRZ Forums.

Choosing the right coax cable for your CB radio setup may seem like a small thing but as you've seen it's something that needs some thought. If you do it right you'll be able to talk on your radio clearly and without any problems. If you don't pay attention to it even the best CB radio kit might not work. You should think of it as a long term investment that you should work on.
