SWR Meters Explained: How to Master CB Radio Calibration Like a Pro

For CB radio enthusiasts, proper calibration is crucial for clear communication and optimal performance. Whether you're a trucker, hobbyist, or just starting out, understanding SWR meters can save you time, effort, and frustration. These handy tools ensure your antenna and radio are working in harmony, minimizing signal loss and maximizing range.

If you're ready to eliminate guesswork and truly master CB radio calibration, we’ve got you covered.

What Is an SWR Meter?

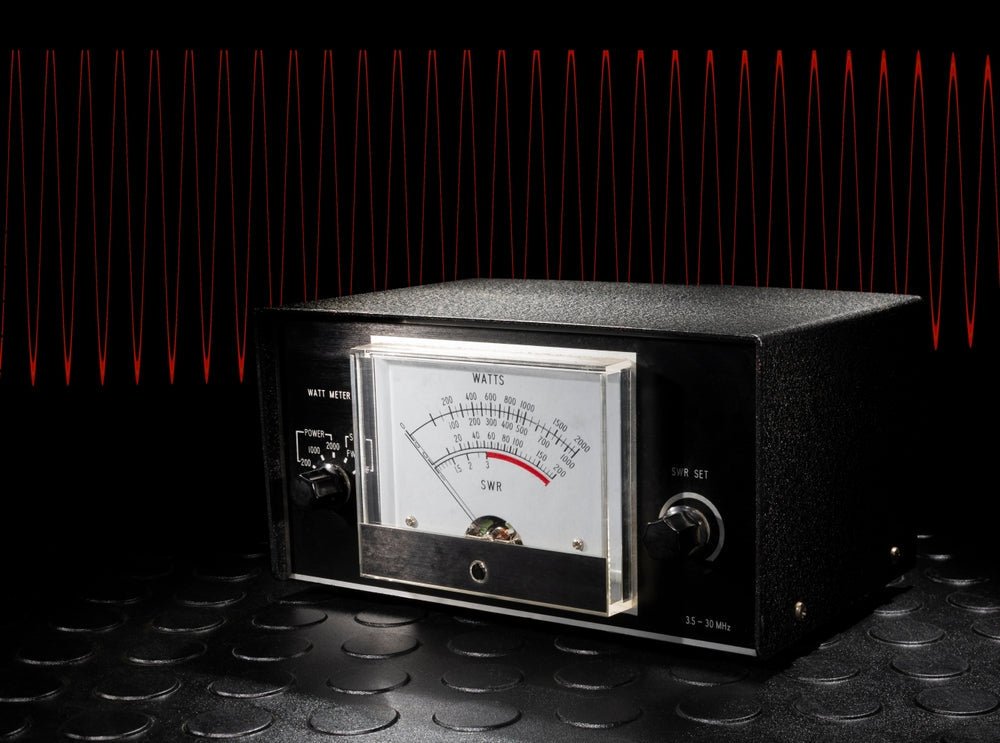

An SWR (standing wave ratio) meter measures the efficiency of your CB radio setup. It indicates how well your antenna is matched to your transmitter. The goal? Achieving a low SWR. A reading of 1.0 is ideal, while anything above 2.0 suggests issues that could harm your equipment and hinder your signal.

Simply put, an SWR meter ensures your communication setup is fine-tuned for peak performance. Without one, you’re operating in the dark when it comes to signal clarity and strength.

Why Is Calibration Important?

Poor calibration leads to weak transmissions, static-filled conversations, and even potential damage to your CB radio. Whether you're chatting with fellow drivers on the highway or using CB for work, accurate calibration improves:

• Signal Strength - Ensures your voice reaches the intended recipient loud and clear.

• Equipment Longevity - Prevents damage caused by reflected radio waves.

• Efficiency - Reduces wasted power and energy.

By using an SWR meter correctly, you're investing in both the lifespan of your radio and the quality of your communication.

How to Use an SWR Meter

Getting started with an SWR meter may seem intimidating, but it’s simpler than it looks. Follow these steps to calibrate your CB radio like a pro:

1. Gather Your Equipment

You’ll need:

• A CB radio

• An SWR meter

• A patch cable (to connect the meter and radio)

• Your CB antenna, installed and positioned.

Make sure your antenna is securely mounted and free from nearby obstructions.

2. Connect the SWR Meter

• Attach the patch cable to the transmitter port on the meter.

• Connect the cable’s other end to the CB radio itself.

• Plug the antenna cable into the antenna port on the SWR meter.

3. Calibration Process

• Set your CB radio to Channel 1.

• Flip the SWR meter to the “FWD” (forward power) position.

• Key the microphone (press and hold the talk button) and adjust the knob on the meter until the needle aligns with the “SET” mark.

• Switch the meter to the “REF” (reflected power) position without releasing the microphone.

• Take note of the needle’s reading.

4. Check Other Channels

Repeat the process on Channel 40. Ideally, SWR readings should be below 2.0 on both channels.

If the reading is too high, your antenna may need adjusting. Refer to your antenna’s user manual for specific tuning instructions.

Tips for Getting the Best Results

To make your calibration process smoother, keep these tips in mind:

• Ensure your vehicle is parked on a flat surface during testing.

• Avoid testing near buildings, trees, or other large obstructions.

• Use quality cables and connectors to ensure accurate readings.

• Re-calibrate whenever you adjust your antenna or add new equipment.

When to Replace Your SWR Meter

While SWR meters are durable, they don't last forever. Regular exposure to outdoor conditions or mishandling can affect accuracy. If your readings seem inconsistent or hard to gauge, it’s time to invest in a new, reliable model. Looking for an upgrade? Explore our SWR meters here.

Learn More Tips for SWR Meters

SWR meters are essential tools for anyone using a CB radio. By understanding how to use one, you’ll experience clearer signals, better range, and long-lasting equipment. It’s a small investment with big rewards for your communication setup.
