TRAM BROWNING BR 240 LMR240 Type 200ft Roll CB, Ham Radio Base Coax Cable
Low Loss LMR240 Type, 100 FOOT, Coaxial Cable for CB Radio
Description:
This is a "RG-8X" size version of the popular LMR-240 type low loss coax. The cable has a characteristic impedance of 50 Ohm.
Most two-way radio communication systems, such as marine, CB radio, amateur, police, fire, WLAN antennas etc., are designed to work with a 50 Ohm cable.
BR-240 cable is to be used in a "single antenna" installation only.
Tram-Browning: Quality Workmanship and Materials - Exceptional Performance and Function - Expert Engineering

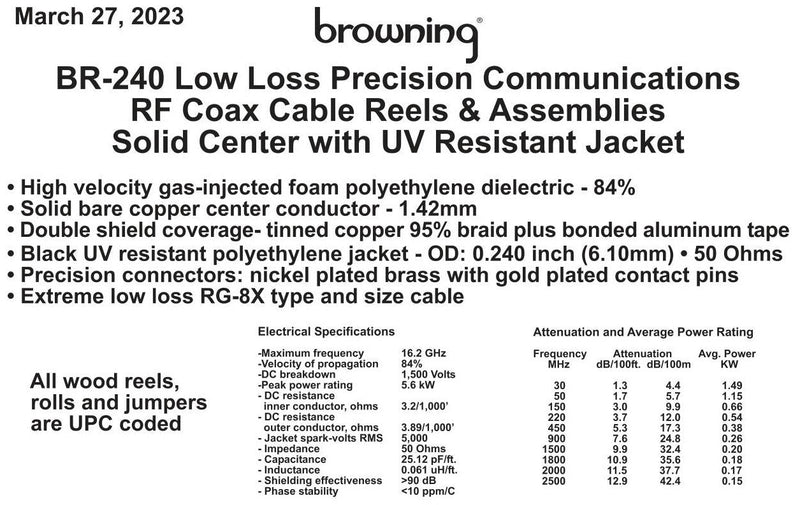

Coax Cable Features & Specifications:
- LMR-240 Type Cable
- Low Loss RG-8X Type Cable
- Braided Cable
- 0.240 Inch Diameter
- Solid Bare Copper Center Conductor
- High Velocity Gas-Injected Foam Dielectric - 84%
- 100% Shield Coverage - 95% Tinned Copper Braid plus Bonded Aluminum Tape
- Color: Black
|
Attenuation and Average Power Rating |
|||
|
Frequency |
Attenuation |
Attenuation |
Avg. Power |
|
30 |
1.3 |
4.4 |
1.49 |
|
50 |
1.7 |
5.7 |
1.15 |
|
150 |
3.0 |
9.9 |
0.66 |
|
220 |
3.7 |
12.0 |
0.54 |
|
450 |
5.3 |
17.3 |
0.38 |
|
900 |
7.6 |
24.8 |
0.26 |
|
1500 |
9.9 |
32.4 |
0.20 |
|
1800 |
10.9 |
35.6 |
0.18 |
|
2000 |
11.5 |
37.7 |
0.17 |
|
2500 |
12.9 |
42.4 |
0.15 |
Electrical Specifications
|
Maximum Frequency |
16.2 GHz |
|
Velocity of Propagation |
84% |
|
DC Breakdown |
1,500 Volts |
|
Peak Power Rating |
5.6kW |
|
DC Resistance Inner Conductor, ohms |
3.2/1,000' |
|
DC Resistance Outer Conductor, ohms |
3.89/1,000' |
|
Jacket Spark - volts RMS |
5,000 |
|
Impedance |
50 ohms |
|
Capacitance |
25.12 pF/ft. |
|
Inductance |
0.061 uH/ft. |
|
Shielding Effectiveness |
> 90 db |
|
Phase Stability |
< 10 ppm/C |
