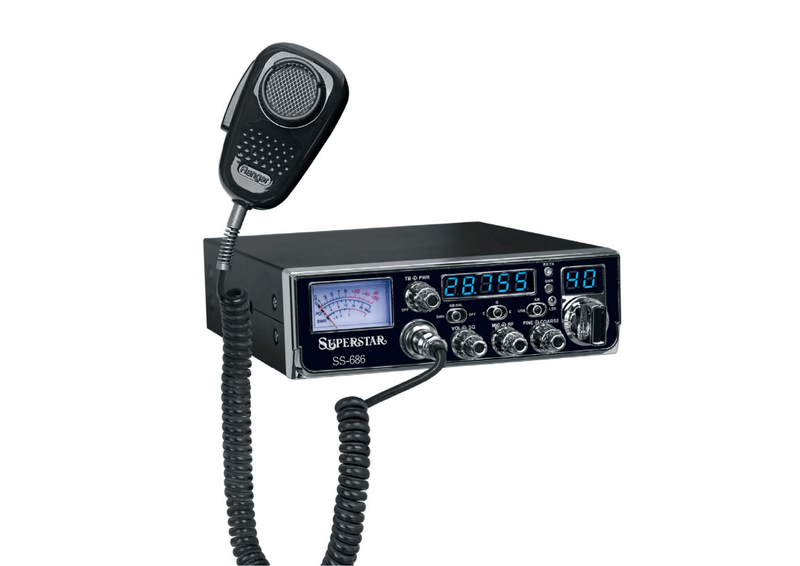

SuperStar SS-686 AM/SSB 10-Meter Radio
The SuperStar SS-686 is a 10-meter AM/SSB mobile amateur radio with a frequency display, large three-in-one analog meter and automatic display dimming. Its listed output is 20W RMS / up to 60W peak on AM and 40W on SSB. A noise-canceling microphone is included with the radio.
Choose the SS-686 when you want AM and single-sideband operation with a traditional front-panel layout. This is an amateur-band radio, not a license-free 40-channel CB transceiver.
Key features
- AM and SSB: Two operating-mode choices for appropriately licensed amateur use.
- Frequency display: See the selected operating frequency.
- Three-in-one meter: View signal, RF power and SWR information.
- Automatic dimming: The display adjusts its brightness automatically.
- Included microphone: A noise-canceling microphone is supplied with the radio.
- Talkback: Monitor your microphone audio through the radio’s speaker.
- Variable RF power: Adjust transmit power for your operating setup.
Radio specifications
| Specification | SuperStar SS-686 |
|---|---|
| Radio class | 10-meter mobile amateur radio |
| Operating modes | AM and SSB |
| Listed operating range | 28.765–29.205 MHz |
| Listed AM output | 20W RMS / up to 60W peak |
| Listed SSB output | 40W |
| Frequency display | Yes |
| Meter | Three-in-one analog meter |
| Display dimming | Automatic |
Plan your installation
Check the radio's physical dimensions, mounting clearance and power requirements before choosing an installation location. Allow room for the controls, microphone cable and rear connections; do not assume a bracket or truck cubby fits from the brand name alone.
Use an antenna system designed and adjusted for your operating frequencies. Inspect the mount, ground connection and coax, then check SWR before transmitting. A meter is a monitoring aid, not a substitute for proper antenna setup.
Complete SS-686 kits and accessories
Explore all SuperStar 10-meter radios and combos.
- SS-686 audio combo: Adds a DRX-9010 external speaker and an extra DRX-6560 microphone.
- SS-686 truck-install combo: Adds the Stryker SR-A10 antenna, DRX-3402 mirror mount and DRX-1518 coax.
- DRX-9010 external speaker: Add an external listening speaker to an existing installation.
The radio-only listing does not include the antenna installation package or external speaker.
Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.
Frequently asked questions
Is the SS-686 a license-free CB radio?
No. It is a 10-meter amateur radio with AM and SSB modes, not a license-free 40-channel CB radio.
How much output does the SS-686 have?
Listed output is 20W RMS / up to 60W peak on AM and 40W on SSB. These are separate mode-specific figures.
Does it operate in FM?
The SS-686 is listed for AM and SSB operation, not FM.
What amateur license is needed?
For the listed 28.765–29.205 MHz operating range, U.S. voice operation requires General-class privileges or higher, or existing Advanced-class privileges. Technician voice privileges are limited to SSB in a different part of the 10-meter band. Operate only on frequencies and modes permitted by your license.
Is a microphone included?
Yes. A noise-canceling microphone is included with the radio.
Does the main listing include an antenna or external speaker?
No. The antenna system and external speaker are separate purchases; the truck-install combo includes an antenna, mount and coax.
Will it fit my existing truck cubby?
Measure the radio and mounting location and allow clearance for controls, brackets and cable connections. Do not assume fit from the truck or radio brand alone.
