CB Radio Coax Cable - Tram Browning BR 240 LMR240 Type 100ft Ham Radio Base Coax Cable
TRAM BROWNING BR 240 LMR240 Type 100 ft CB, Ham Radio Base Coax Cable

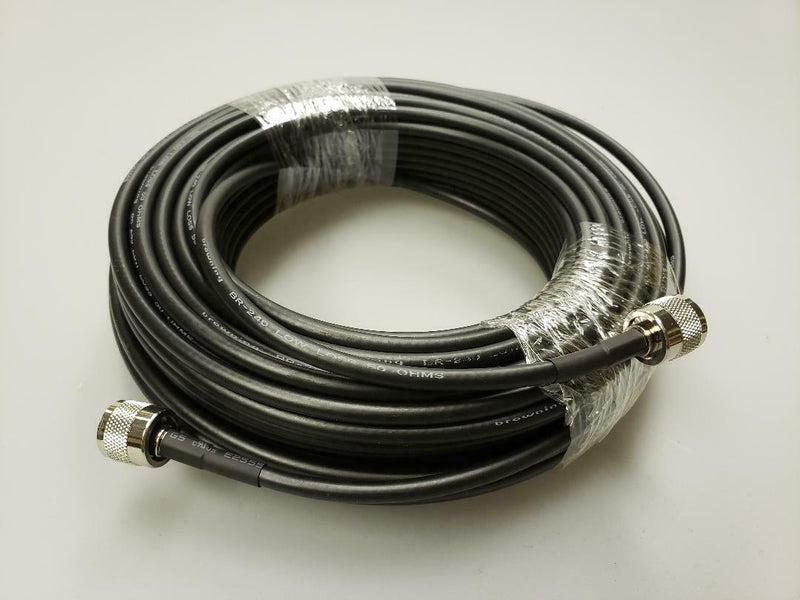

Low Loss LMR240 Type, 100 FOOT, Coaxial Cable for CB Radio

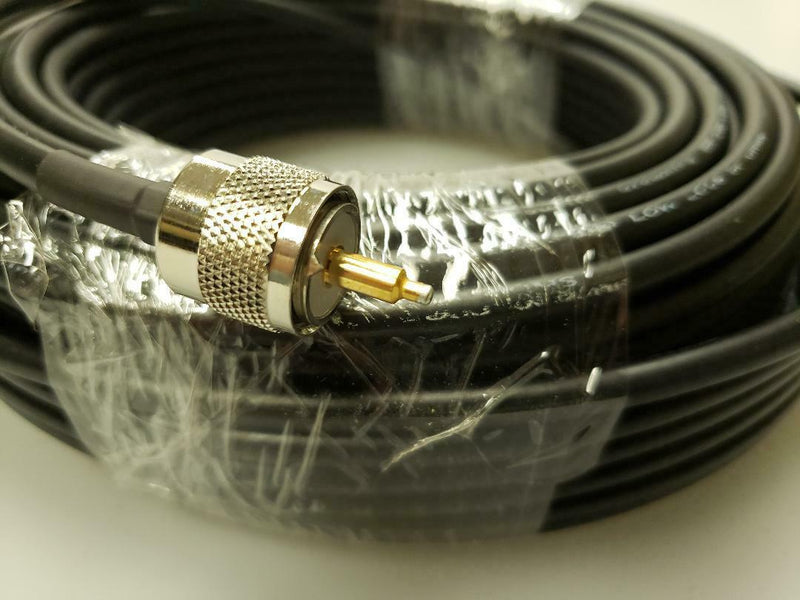

WITH Nickle Plated PL-259's and gold plated contact pin
Description:

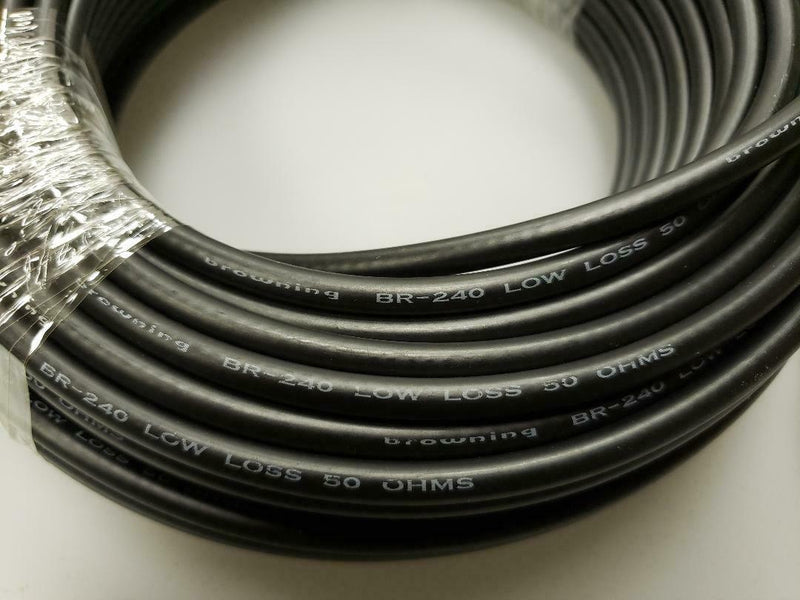

This is a "RG-8X" size version of the popular LMR-240 type low loss coax. The cable has a characteristic impedance of 50 Ohm.
Most two-way radio communication systems, such as marine, CB radio, amateur, police, fire, WLAN antennas etc., are designed to work with a 50 Ohm cable.
BR-240 cable is to be used in a "single antenna" installation only.
Tram-Browning: Quality Workmanship and Materials - Exceptional Performance and Function - Expert Engineering

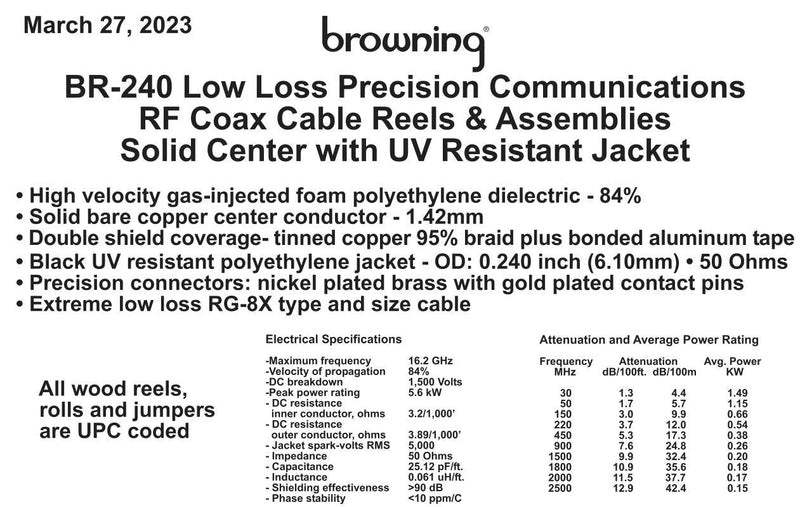

Features and Specifications:
- LMR-240 Type Cable
- Low Loss RG-8X Type Cable
- Braided Cable
- 0.240 Inch Diameter
- Solid Bare Copper Center Conductor
- High Velocity Gas-Injected Foam Dielectric - 84%
- 100% Shield Coverage - 95% Tinned Copper Braid plus Bonded Aluminum Tape
- Use BR-240 Crimp Connectors Only
- Color: Black
|
Attenuation and Average Power Rating |
|||
|
Frequency |
Attenuation |
Attenuation |
Avg. Power |
|
30 |
1.3 |
4.4 |
1.49 |
|
50 |
1.7 |
5.7 |
1.15 |
|
150 |
3.0 |
9.9 |
0.66 |
|
220 |
3.7 |
12.0 |
0.54 |
|
450 |
5.3 |
17.3 |
0.38 |
|
900 |
7.6 |
24.8 |
0.26 |
|
1500 |
9.9 |
32.4 |
0.20 |
|
1800 |
10.9 |
35.6 |
0.18 |
|
2000 |
11.5 |
37.7 |
0.17 |
|
2500 |
12.9 |
42.4 |
0.15 |
Electrical Specifications
|
Maximum Frequency |
16.2 GHz |
|
Velocity of Propagation |
84% |
|
DC Breakdown |
1,500 Volts |
|
Peak Power Rating |
5.6kW |
|
DC Resistance Inner Conductor, ohms |
3.2/1,000' |
|
DC Resistance Outer Conductor, ohms |
3.89/1,000' |
|
Jacket Spark - volts RMS |
5,000 |
|
Impedance |
50 ohms |
|
Capacitance |
25.12 pF/ft. |
|
Inductance |
0.061 uH/ft. |
|
Shielding Effectiveness |
> 90 db |
|
Phase Stability |
< 10 ppm/C |
