Cobra 19 MINI AM/FM Compact CB Radio
Cobra 19 MINI AM/FM Compact CB Radio

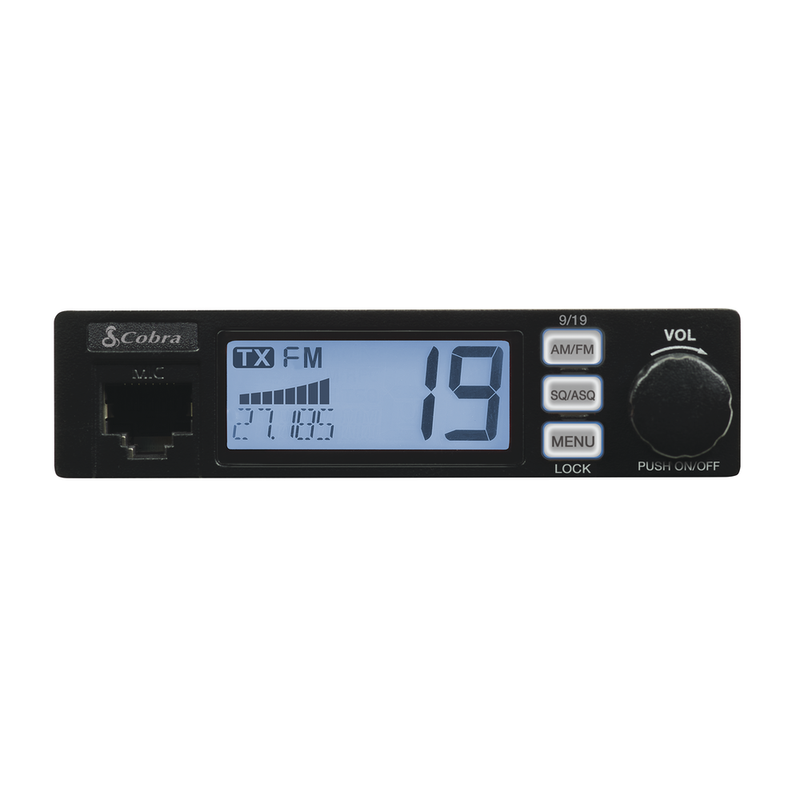

The Cobra 19 MINI AM/FM brings 40-channel CB communication to vehicles with limited mounting space. Its compact chassis combines AM and FM operation, 4-watt output, an illuminated LCD, and microphone-mounted channel controls.
Use the included 12V vehicle power adapter for a removable installation, or the supplied hardwire kit for a permanent setup. A properly installed and tuned CB antenna is required and sold separately.
Key features
- AM and FM on all 40 CB channels: Select the mode used by the other radios in your group.
- Compact chassis: Fits installations where a full-size radio would take up too much room.
- 4-watt output: Standard CB power in a small mobile radio.
- Manual and automatic squelch: Manage background noise between incoming transmissions.
- Adjustable RF gain: Control receiver sensitivity to suit operating conditions.
- VOX capability: Voice-activated transmission when enabled and correctly adjusted.
- Instant channels 9 and 19: Quick access from the front-panel control.
- Microphone channel controls: Change channels without reaching for the radio.
- External speaker connection: Add a standard CB external speaker when a different speaker location is useful.
- Transmit time-out timer: Helps prevent an accidentally held transmit button from keeping the channel occupied.
Specifications
| Specification | Detail |
|---|---|
| Manufacturer model | 19MINIAMFM |
| Radio service | CB |
| Channels | 40 |
| Modes | AM and FM |
| Frequency coverage | 26.965–27.405 MHz |
| RF output | 4 watts |
| Vehicle power | 12V DC system; 13.8V DC nominal, negative ground |
| Dimensions, as listed on Cobra's product page | 0.98 inches high × 4.09 inches wide × 4.37 inches deep |
| Microphone connection | Front-panel RJ-45 connector |
| Antenna connection | SO-239 socket for a PL-259-equipped antenna cable |
| Display | Illuminated LCD |
Allow additional room for the mounting bracket, microphone plug, rear antenna connection, and power cable when planning the installation.

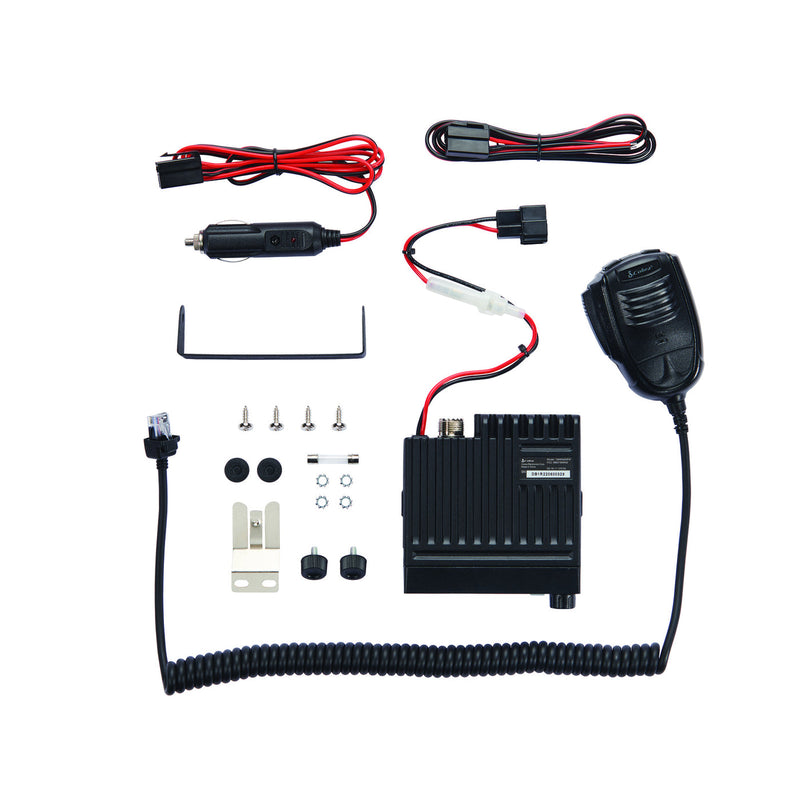

What's included
- Cobra 19 MINI AM/FM CB radio
- Microphone with channel controls
- Radio mounting bracket and hardware
- Microphone bracket
- 12V vehicle power adapter
- Hardwire power kit with connector
- Quick start guide
The CB antenna, antenna mount, and any additional installation coax are not included. Do not transmit until a suitable antenna system is connected and checked.
Installation and accessories
Choose the antenna and mount for your vehicle rather than the radio's size. For an optional external speaker, consider the Driver Extreme DRX-9010 premium CB speaker.
Keep the included microphone with this radio unless a replacement is specifically wired for the Cobra 19 MINI AM/FM. A standard four-pin Cobra microphone is not a direct plug-in replacement for its RJ-45 connection.
Replacing a Cobra 19 DX IV?
The Cobra 19 MINI AM/FM is our recommended current compact replacement for the discontinued Cobra 19 DX IV. It supports AM and FM on all 40 CB channels and includes its own microphone, mounting hardware, and 12V power accessories.
Check the MINI's dimensions and installation requirements before swapping radios. The 19 DX IV's four-pin microphone does not plug directly into the MINI's RJ-45 microphone connection; use the microphone included with the MINI.
Frequently asked questions
Does the Cobra 19 MINI AM/FM work with older AM-only CB radios?
Yes. Select AM and the same CB channel to communicate with an AM-only CB radio. FM communication requires both radios to support FM and use the same channel and mode.
Is an antenna included?
No. A separate CB antenna system is required. Install and tune the antenna before transmitting; the radio's compact size does not remove the need for an external antenna.
Can I power it from my vehicle's 12V accessory socket?
Yes. A 12V vehicle power adapter is included, along with a hardwire kit for a permanent installation. Use an appropriate 12V DC vehicle supply rather than a USB power connection.
How much room does the radio need?
Cobra's product page lists the radio at 0.98 inches high, 4.09 inches wide, and 4.37 inches deep. Leave additional clearance for the bracket, microphone plug, antenna connection, and power cable.
Can I connect an external CB speaker?
Yes. The radio has a rear external speaker connection. Plugging in an external speaker disconnects the internal speaker.
Will a standard four-pin Cobra microphone plug into this radio?
No. The Cobra 19 MINI AM/FM uses a front-panel RJ-45 microphone connection. Use the included microphone or a replacement specifically compatible with this model.
Is this the AM/FM model or the older AM-only MINI?
This listing is for model 19MINIAMFM, which supports AM and FM on all 40 CB channels. It is not the older AM-only 19MINICB.
Is the 19 MINI AM/FM a replacement for the Cobra 19 DX IV?
CB Radio Supply recommends the 19 MINI AM/FM as a current compact alternative to the discontinued Cobra 19 DX IV. It is not a direct microphone or mounting-hardware swap: use the MINI's included microphone and hardware, and check its dimensions and connections before installation.
Owner's manual
Download the Cobra 19 MINI AM/FM owner's manual for installation, controls, and operating instructions.
