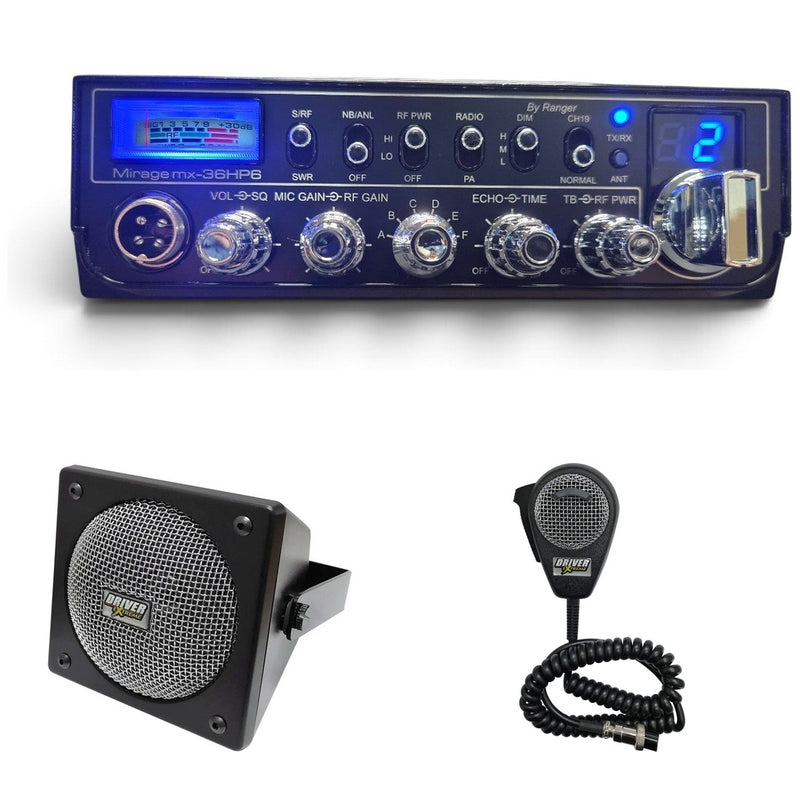

Mirage MX-36HP6 + DRX-9010 Speaker + DRX-6560 Mic — Complete 10-Meter Audio Combo

The audio-upgrade bundle for the Mirage MX-36HP6. Everything in one order: the 60W-PEP Mirage MX-36HP6 10-meter amateur radio built on the Ranger Communications chassis, the DRX-9010 Driver Extreme premium external speaker to pull incoming audio off-axis and cut through cab or shack noise, and the DRX-6560 Driver Extreme 4-pin noise-cancelling dynamic microphone to replace the stock hand mic with a chrome-grille dynamic element acoustically tuned for natural speech. Ships as one order.

Note: this is a 10-meter amateur radio. Operating it on-air requires an FCC amateur radio license (Technician-class minimum for 10-meter operation in the U.S.).

Mirage MX-36HP6 60 Watt 10-Meter Amateur Radio

• 10-meter amateur transceiver — 28.765–29.205 MHz, 40 channels
• 60 Watts PEP AM output on the Ranger Communications chassis
• Built-in SWR meter, variable RF power, RF gain, and MIC gain
• ANL and Noise Blanker for cleaner receive in electrically noisy environments
• Adjustable Echo, Talkback with on/off switch
• Channel 9 & 19 priority, +10 KC switch, 3-position dimmer
• Front-panel 4-pin microphone jack (correct wiring for the DRX-6560)
• PA function and PA jack
• 13.8 VDC 3-pin power · 4W audio output into 8 Ω
• Compact Cobra 29–size chassis: 7-3/8″ W × 8-3/4″ D × 2-1/4″ H · 4.2 lb
• Includes Premium SRA-198 Noise-Canceling Microphone, mic clip, power cord, mounting bracket, hardware
• 1-year Ranger Communications manufacturer warranty

DRX-9010 Driver Extreme Premium External Speaker

• Wedge-shape design for flexible dash, desk, or overhead mounting
• Heavy-duty mounting bracket included
• Detachable 10 ft. 20-gauge twisted-pair low-inductance speaker cable
• 15 W nominal power handling · 6 Ω impedance
• 150 Hz – 6 kHz linear frequency response — voice-band tuned
• Operating range −4 °F to +140 °F
• 3.5 mm straight-to-right-angle cord plugs (fits the MX-36HP6 rear speaker jack)
• Dimensions: 5.0″ W × 4.5″ D × 4.75″ H · 2 lb 5 oz including bracket

DRX-6560 Driver Extreme 4-Pin Noise-Cancelling Dynamic Microphone

• Dynamic noise-cancelling capsule element
• Ergonomic body with contoured PTT switch and rugged chrome-plated grille
• Standard 4-pin CB / Ranger wiring — plugs directly into the MX-36HP6 front-panel mic jack
• Sensitivity −54 dB ±3 dB (1 V/Pa @ 1 kHz)
• Frequency response 55 Hz – 7 kHz (proximity-effect compensated)
• Measurable impedance 500 Ω ±30 Ω
• Internal diffuser reduces breath pops
• Extra-long strain relief · 9 ft high-quality cord · no battery required

Why the audio combo works

Two of the most common upgrades operators make on any 10-meter mobile are (1) getting the audio off the top of the radio so voice comes out clearly on-axis, and (2) swapping the stock hand mic for a dynamic noise-cancelling element. The DRX-9010 handles the first — its wedge shape and 150 Hz – 6 kHz voice-tuned response pull the received audio out of a noisy cab or shack. The DRX-6560 handles the second — a dynamic capsule with acoustic tuning for natural speech, no batteries, and the correct 4-pin wiring for the MX-36HP6's front-panel jack. Both are on the same order, both ship together.

Recommended install add-ons

• Stryker SR-A10 CB / 10-meter antenna — dual-band, matches this radio's frequency range for mobile installs. SWR verified at antenna install, not at the radio.
• DRX-1518 M213 18 ft premium coax
• DRX-3402 Magnum double-slotted mirror mount
• Pro tune and alignment — don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.

Buy the components separately

Prefer to build the bundle piece by piece or you already own one of these? Every component is available on its own:

• Mirage MX-36HP6 60 Watt 10-Meter Amateur Radio
• DRX-9010 Driver Extreme Premium External Speaker
• DRX-6560 Driver Extreme 4-Pin Noise-Cancelling Dynamic Microphone

Warranty

The Mirage MX-36HP6 is backed by Ranger Communications' 1-year manufacturer warranty. The DRX-9010 speaker and DRX-6560 microphone are covered by Driver Extreme's manufacturer warranty.
