Ranger RCI-29 Base Station Audio Combo with DRX-9010 & DRX-6560

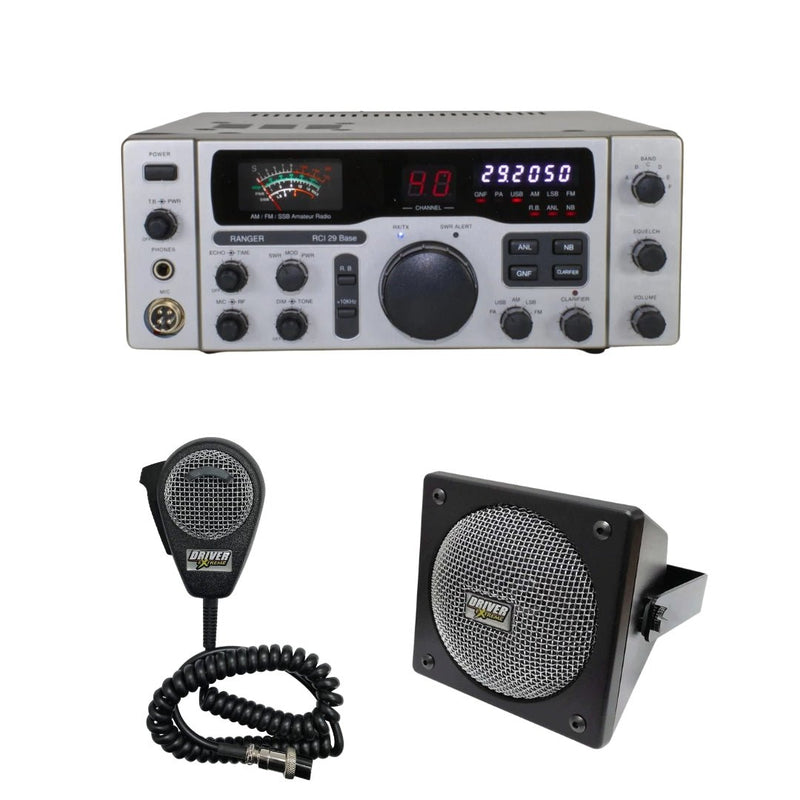

This Ranger RCI-29 base station audio combo pairs the 10-meter AM/FM/SSB radio with a Driver Extreme DRX-9010 external receive speaker and DRX-6560 four-pin noise-cancelling dynamic microphone. It is for a desk or home radio station where you want to position the receive speaker separately from the radio and use a handheld noise-cancelling microphone.
What's included in the RCI-29 audio combo?
| Component | Quantity | Role in your station |
|---|---|---|
| Ranger RCI-29 10-meter base station radio | 1 | AM, FM, USB and LSB operation with AC/DC power options |
| Driver Extreme DRX-9010 external speaker | 1 | Separate receive-audio speaker with a detachable cable and mounting bracket |
| Driver Extreme DRX-6560 four-pin microphone | 1 | Noise-cancelling dynamic microphone with a nine-foot cord |
RCI-29 base station features
- Four operating modes: AM, FM, upper sideband and lower sideband.
- Manufacturer-rated output: 80 watts PEP on AM/USB/LSB, 25 watts RMS on AM and 60 watts on FM.
- Power options: Built-in AC supply, rear DC connection and AC/DC selector.
- Displays and antenna monitoring: Six-digit frequency counter, four-scale analog meter, auto-calibrating SWR meter and high-SWR alert.
- Operating controls: RF power, RF gain, microphone gain, squelch, clarifier, echo, talkback and switchable roger beep, plus ANL/NB/GNF filtering.
- Desk-friendly chassis: White LED display lighting, dual cooling fans and flip-down front feet.
- Dimensions: 11.25 inches wide × 13.5 inches deep × 4.75 inches high.
Driver Extreme speaker and microphone
The DRX-9010 uses a wedge-shaped enclosure with a mounting bracket and detachable 10-foot speaker cable with 3.5mm plugs. Its 6-ohm impedance and 15-watt nominal power handling fit the RCI-29 manual's rear EXT. SP connection specification of 4–8 ohms and 5 watts. Use the radio's external receive-speaker jack, not the PA jack.
The DRX-6560 is a dynamic noise-cancelling microphone with a nine-foot cord, contoured push-to-talk switch, chrome-plated grille and internal breath-pop diffuser. Its four-pin wiring matches the RCI-29: pin 1 shield/ground, pin 2 audio, pin 3 transmit and pin 4 receive. The microphone does not require a battery.
What you still need
An antenna and antenna feed line are not included in this audio combo. Use a suitable 10-meter antenna system and 50-ohm coaxial cable, and follow the RCI-29 owner's manual for power connections and station setup.
Need only the radio? See the standalone Ranger RCI-29 base station for the full radio specifications and warranty information.
Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.
RCI-29 audio combo frequently asked questions
What is included in this RCI-29 combo?
The combo includes one Ranger RCI-29 base station radio, one Driver Extreme DRX-9010 external speaker and one Driver Extreme DRX-6560 four-pin noise-cancelling dynamic microphone.
Is this an antenna installation kit?
No. This is an audio combo. An antenna and antenna feed line are not included.
Does the DRX-6560 microphone match the RCI-29 wiring?
Yes. Both use pin 1 for shield/ground, pin 2 for audio, pin 3 for transmit and pin 4 for receive. The DRX-6560 is a dynamic microphone and does not require a battery.
Where does the DRX-9010 speaker connect?
Connect it to the RCI-29's rear EXT. SP receive-speaker jack, not the PA jack. The DRX-9010 is a 6-ohm speaker, within the manual's 4–8-ohm specification for that jack. Connecting it disables the radio's internal speaker.
Does the RCI-29 audio combo support SSB?
Yes. The included RCI-29 supports upper and lower sideband, as well as AM and FM.
Can the included radio operate on AC or DC power?
Yes. The RCI-29 supports 100–120V AC at 50/60Hz in its standard configuration or 13.8V DC. Use the rear AC/DC selector and follow the owner's manual for the correct connection.
