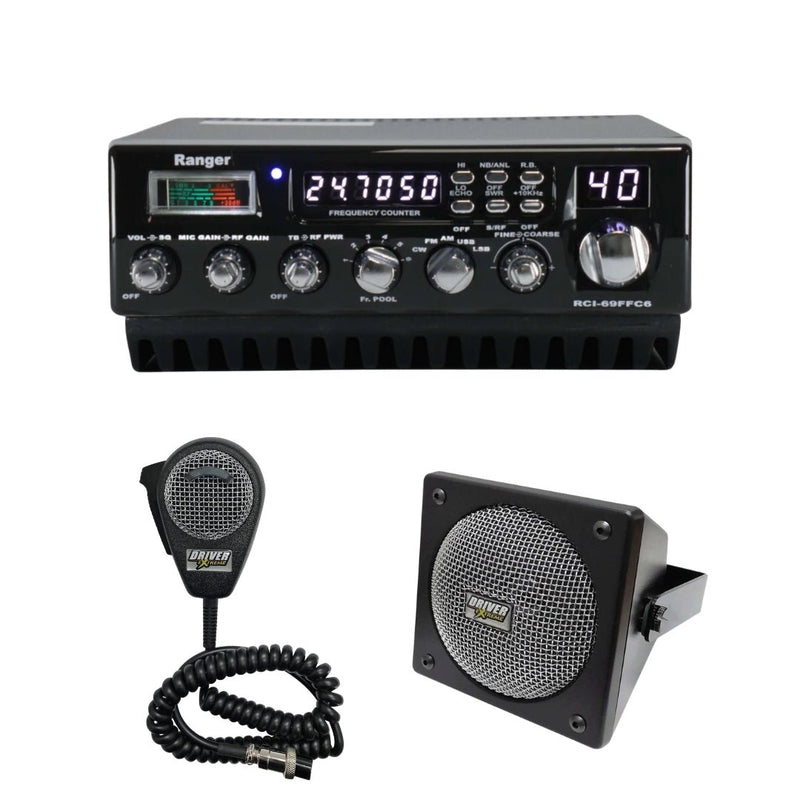

Ranger RCI-69FFC6 + DRX-9010 Speaker + DRX-6560 Mic — Complete 10-Meter Audio Combo

The audio-upgrade bundle for the Ranger RCI-69FFC6. Everything in one order: the 450W-PEP Ranger RCI-69FFC6 10-meter amateur radio, the DRX-9010 Driver Extreme premium external speaker to pull SSB voice off-axis and cut through cab or shack noise, and the DRX-6560 Driver Extreme 4-pin noise-cancelling dynamic microphone to replace the stock mic with a chrome-grille dynamic element that's acoustically tuned for natural speech. Ships as one order.

Note: this is a 10-meter amateur radio. Operating it on-air requires an FCC amateur radio license (Technician-class minimum for 10-meter SSB in the U.S.).

Ranger RCI-69FFC6 10-Meter Amateur Radio

• 10-meter amateur transceiver — 28.245–29.655 MHz, 240 channels
• AM / FM / USB / LSB / CW / PA modes
• 150W RMS AM/FM/CW · 450W PEP AM/SSB
• PLL frequency synthesis, 0.001% stability, six-digit frequency counter
• Multipurpose S/RF + SWR meter, white-LED display with auto-dimming (2024 update)
• NB/ANL, echo, talkback, roger beep, +10 kHz button
• RF gain, MIC gain, variable RF power output
• Fine (RX ±1.1 kHz) + Coarse (RX/TX ±3.1 kHz) clarifier
• Rear heavy-duty heatsink with cooling fan
• 4-pin side-mount microphone jack (Ranger locking-ring / GX16)
• 50 Ω antenna, SO-239 pigtail · 13.8 VDC · 11.25″ × 7.875″ × 3.26″ · 8 lb 3 oz

DRX-9010 Driver Extreme Premium External Speaker

• Wedge-shape design for flexible dash, desk, or overhead mounting
• Heavy-duty mounting bracket included
• Detachable 10 ft. 20-gauge twisted-pair low-inductance speaker cable
• 15 W nominal power handling · 6 Ω impedance
• 150 Hz – 6 kHz linear frequency response — voice band tuned
• Operating range −4 °F to +140 °F
• 3.5 mm straight-to-right-angle cord plugs (fits the RCI-69FFC6 rear speaker jack)
• Dimensions: 5.0″ W × 4.5″ D × 4.75″ H · 2 lb 5 oz including bracket

DRX-6560 Driver Extreme 4-Pin Noise-Cancelling Dynamic Microphone

• Dynamic noise-cancelling capsule element
• Ergonomic body with contoured PTT switch and rugged chrome-plated grille
• Standard 4-pin CB / Ranger wiring — plugs directly into the RCI-69FFC6 side-mount jack
• Sensitivity −54 dB ±3 dB (1 V/Pa @ 1 kHz)
• Frequency response 55 Hz – 7 kHz (proximity-effect compensated)
• Measurable impedance 500 Ω ±30 Ω
• Internal diffuser reduces breath pops
• Extra-long strain relief · 9 ft high-quality cord · no battery required

Why the audio combo works

Two of the most common upgrades operators make on any high-PEP 10-meter radio are (1) getting the audio off the top of the radio so SSB comes out clearly on-axis, and (2) swapping the stock hand mic for a dynamic noise-cancelling element. The DRX-9010 handles the first — its wedge shape and 150 Hz – 6 kHz voice-tuned response pull the received audio out of a noisy cab or shack. The DRX-6560 handles the second — a dynamic capsule with acoustic tuning for natural speech, no batteries, and the correct 4-pin wiring for the Ranger side-mount jack. Both are on the same order, both ship together.

Recommended install add-ons

• Stryker SR-A10 CB / 10-meter antenna — dual-band, matches this radio's frequency range for mobile installs. SWR verified at antenna install, not at the radio.
• DRX-1518 M213 18 ft premium coax
• DRX-3402 Magnum double-slotted mirror mount
• Pro tune and alignment — don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.

Buy the components separately

Prefer to build the bundle piece by piece or you already own one of these? Every component is available on its own:

• Ranger RCI-69FFC6 10-Meter Amateur Radio
• DRX-9010 Driver Extreme Premium External Speaker
• DRX-6560 Driver Extreme 4-Pin Noise-Cancelling Dynamic Microphone

Warranty

The RCI-69FFC6 is covered by Ranger USA's factory warranty — register at rangerusa.com/warranty-information or by phone at 619-271-4035. CB Radio Supply does not offer an in-house warranty on the RCI-69FFC6, and all RCI-69FFC6 sales are final. The DRX-9010 speaker and DRX-6560 microphone are covered by Driver Extreme's manufacturer warranty.

Questions about compatibility, licensing, or install? Contact CB Radio Supply — we work with amateur operators and Ranger dealers every day.
