SuperStar SS-96VHP Audio Combo with DRX-9010 Speaker and Extra Mic
SuperStar SS-96VHP Audio Combo: External Speaker and Extra Four-Pin Mic
Pair the SuperStar SS-96VHP 100W PEP AM/SSB 10-Meter Radio with a DRX-9010 external speaker and an extra DRX-6560 noise-cancelling microphone. This package suits a mobile installation that already has an appropriate antenna system and needs a dedicated received-audio speaker plus an additional handheld microphone.

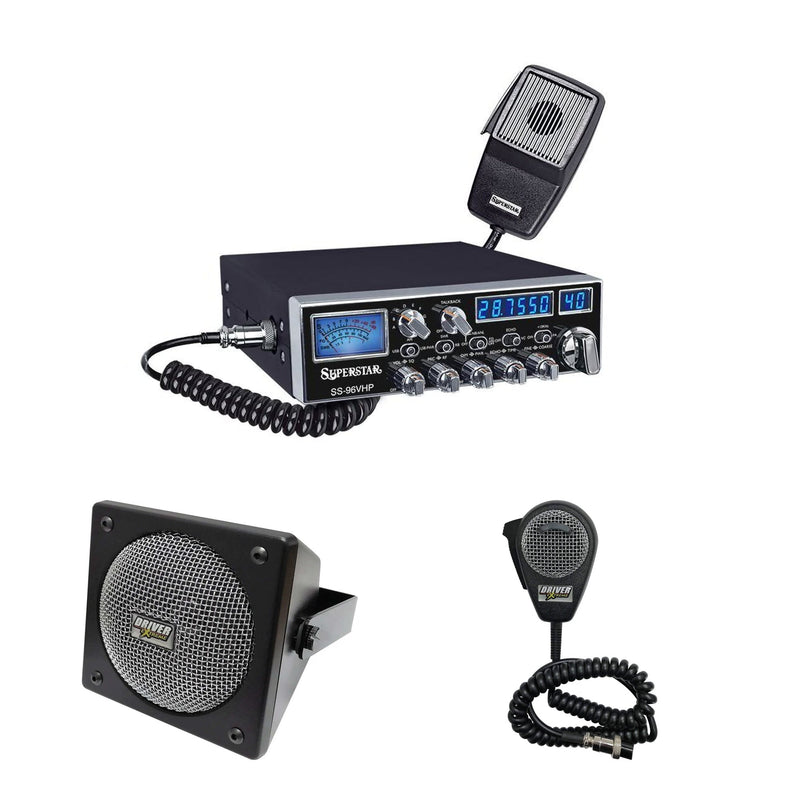

Included Components
| Item | Quantity | Role |
|---|---|---|
| SuperStar SS-96VHP 100W PEP AM/SSB 10-Meter Radio | 1 | AM, USB and LSB amateur radio with manufacturer-rated 100W PEP AM/SSB, variable RF power and talkback |

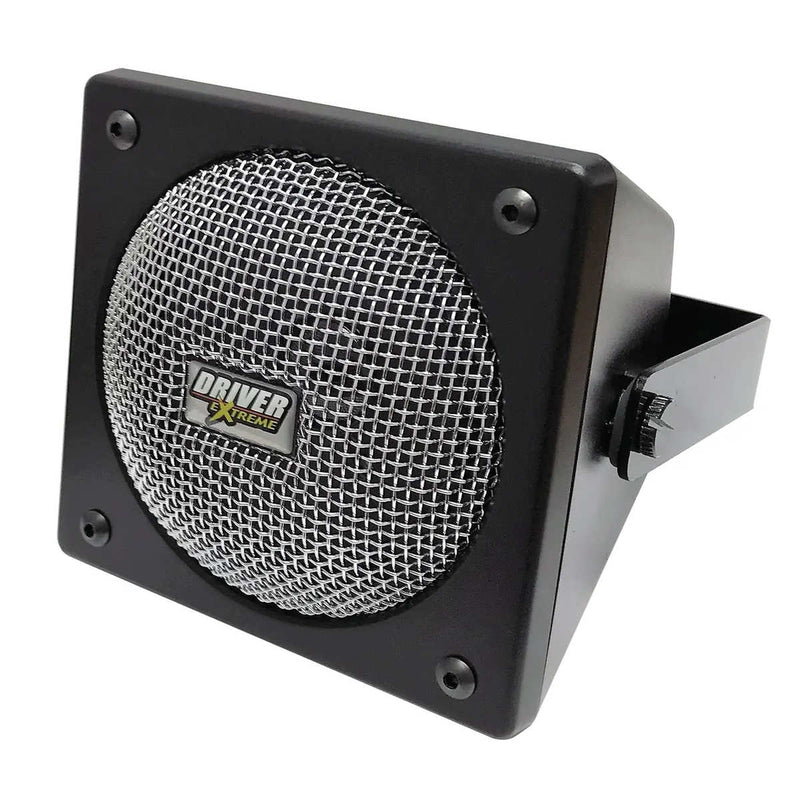

| Driver Extreme DRX-9010 External Speaker | 1 | External communications speaker for received audio |

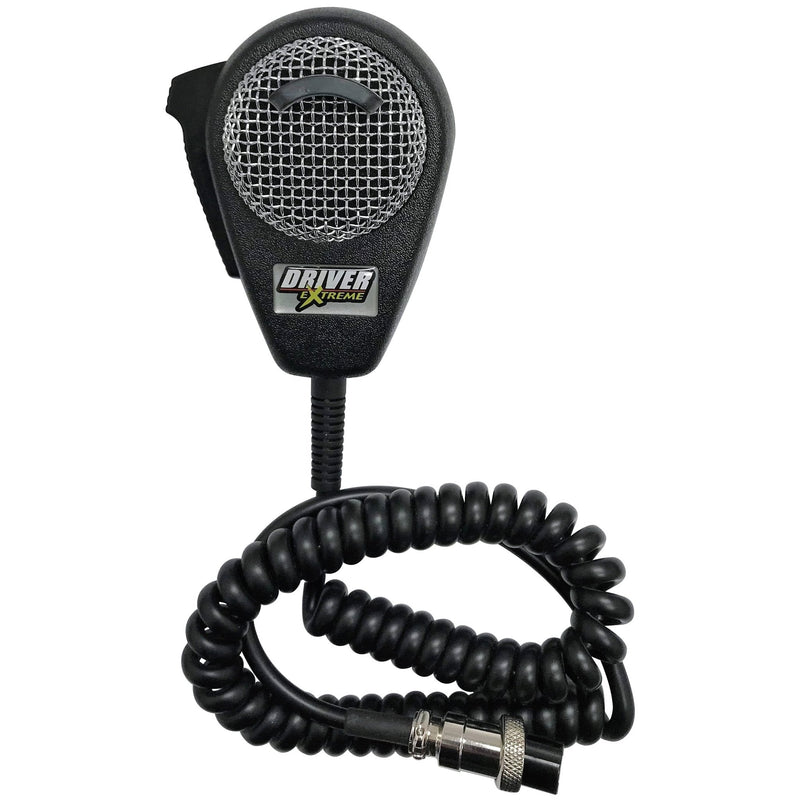

| Driver Extreme DRX-6560 4-Pin Noise-Cancelling Dynamic Microphone | 1 | Extra four-pin noise-cancelling dynamic microphone |
SS-96VHP Radio Features
- AM, upper sideband and lower sideband operation, plus PA functionality.
- Manufacturer-rated 100 watts PEP AM/SSB output with variable RF power control.
- Adjustable talkback, echo, voice-change controls and a switchable roger beep.
- Blue frequency counter, separate channel display, illuminated meter and dimmer.
- NB/ANL receive-noise controls and fine/coarse clarifier.

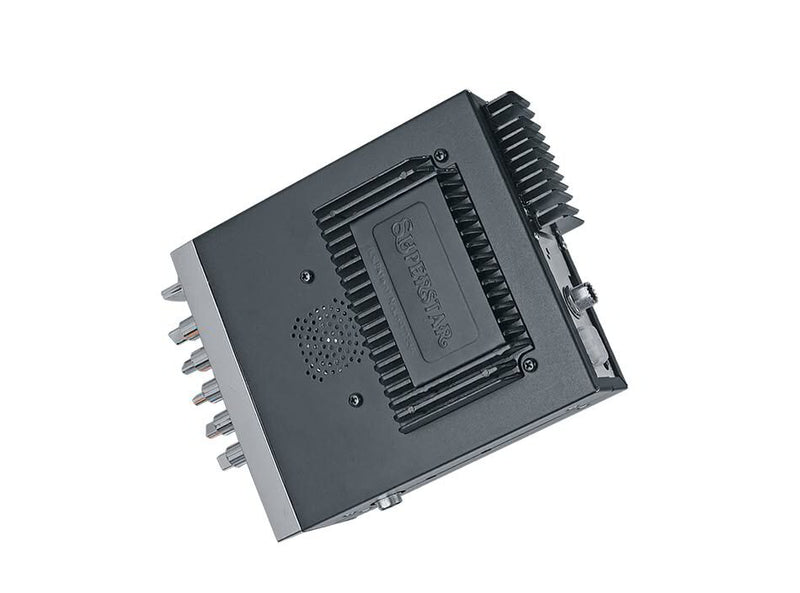

- Side-mounted standard Cobra-style four-pin microphone connector and external heatsink surfaces.
Radio Specifications
| Manufacturer-rated output | 100 watts PEP AM/SSB |
|---|---|
| Frequency range | 28.315 to 28.7550 MHz |
| Power requirement | 13.8V DC |
| Frequency shift | +10 kHz |
| Meter functions | Signal strength, power and SWR |
| SWR circuit | Automatic SWR circuit |
Audio Setup
The SS-96VHP uses standard Cobra-style four-pin microphone wiring, matching the included DRX-6560. Its connector is on the side of the radio, so allow clearance for the plug and cord. Connect the DRX-9010 to the external-speaker output for received audio, and mount it where it will not obstruct controls or vehicle safety equipment. The extra DRX-6560 does not remove the factory microphone supplied with the radio.
This package does not include an antenna, antenna mount or coax cable. Use a suitable antenna system adjusted for the frequencies you intend to operate.
Amateur Radio Operation
The SS-96VHP is a 10-meter amateur radio, not a license-free CB radio. Transmitting requires the appropriate amateur radio license. Use only frequencies and modes permitted by your license.
Pro Tune and Alignment
Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.
Other SS-96VHP Options
Choose the SS-96VHP radio by itself or the SuperStar SS-96VHP Truck Install Combo with SR-A10 Antenna. Browse all SuperStar 10-meter radios and packages.
Frequently Asked Questions
What is included in the SS-96VHP audio combo?
The package includes one SuperStar SS-96VHP radio, one Driver Extreme DRX-9010 external speaker, and one extra Driver Extreme DRX-6560 four-pin noise-cancelling dynamic microphone. The factory microphone supplied with the radio stays included.
Which extra microphone is included?
The additional microphone is the Driver Extreme DRX-6560 four-pin noise-cancelling dynamic microphone. It uses standard four-pin Cobra-style wiring and does not require a battery.
Does the extra microphone replace the factory microphone?
No. The DRX-6560 is an additional microphone; the factory microphone supplied with the radio stays in the package.
What is the DRX-9010 speaker used for?
The DRX-9010 is an external communications speaker for received audio. Connect it to the radio's external-speaker output, not its PA output.
Does this audio combo include an antenna or coax?
No. An antenna, mount and coax are not included in the audio package. Use a suitable antenna system adjusted for your operating frequencies.
Does the SS-96VHP have sideband and variable power?
Yes. It supports AM, USB and LSB, with manufacturer-rated 100 watts PEP AM/SSB output, variable RF power, adjustable talkback, echo and a frequency counter.
Is this a license-free CB radio package?
No. The SS-96VHP is a 10-meter amateur radio. Transmitting requires the appropriate amateur radio license and operation within the frequencies and modes permitted by your license.
