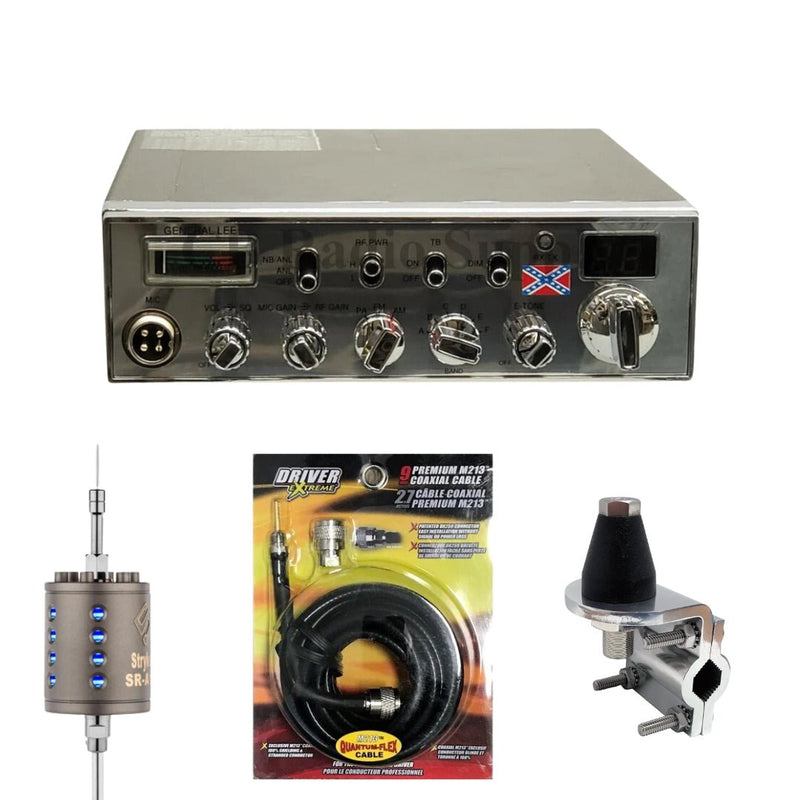

General Lee 10 Meter Radio + Stryker SR-A10 Antenna + DRX-3402 Mirror Mount + DRX-1518 18 ft M213 Coax Combo

This is a full mirror-mount 10 meter install kit built around the trucking industry's long-running best-selling 10m mobile radio. It bundles the General Lee with a high-power Stryker SR-A10 antenna modeled after the U.S. Air Force Thunderbolt II lightning-rod design, a heavy-duty Driver Extreme DRX-3402 aluminum mirror mount, and 18 feet of Driver Extreme M213 Quantum-Flex double-shielded coax with tinned copper braid. If you're wiring up a truck for 10 meter operation from scratch, this bundle is the shortest path from box to on-the-air.

What's included in this combo

• General Lee 10 Meter Radio — Ranger-built AM/FM/PA 10m mobile transceiver, ~45W PEP stock, dual IRF-520 MOSFET finals, front-panel 4-pin mic jack, blue LED display, dual-control echo, switchable talkback, six-band selector.
• Stryker SR-A10 Antenna — 10,000W rated 10m/CB mobile antenna, 6-gauge solid copper wound and coated in 100% silver plate, extremely efficient high-Q coil inside a high-impact Mobay plastic double-wall coil cover, with 10" and 20" stainless steel shafts and a 49" stainless steel whip. 2-year Stryker warranty.
• Driver Extreme DRX-3402 Heavy-Duty Mirror Mount — Extra-large 2.50" wide mount cut from .250" thick aircraft-grade aluminum, Driver Extreme Square-Lock hardware with stainless steel carriage bolts and K-Lock nuts, DX239 proprietary heavy-duty stud, and a stainless steel center stud encased in a 1" plated aluminum hex base.
• Driver Extreme DRX-1518 18 ft M213 Quantum-Flex Coax — 50-ohm impedance, double-shielded (96% tinned copper braid + 100% free-floating aluminum foil), ultra-low loss, super-flex construction ideal for cab-to-antenna runs.

Why this bundle

The three most common ways a 10 meter install goes wrong are cheap antennas that can't take the radio's power, mirror mounts that flex and eventually break, and thin coax that loses too much power on the way to the antenna. This bundle handles all three: the SR-A10 is rated well beyond anything the General Lee (or a modest amplifier) will ask of it, the DRX-3402 mount uses aircraft-grade aluminum with Square-Lock hardware that stays torqued, and the DRX-1518 M213 coax is double-shielded low-loss cable that keeps as much of your ~45W as possible making it out to the antenna.

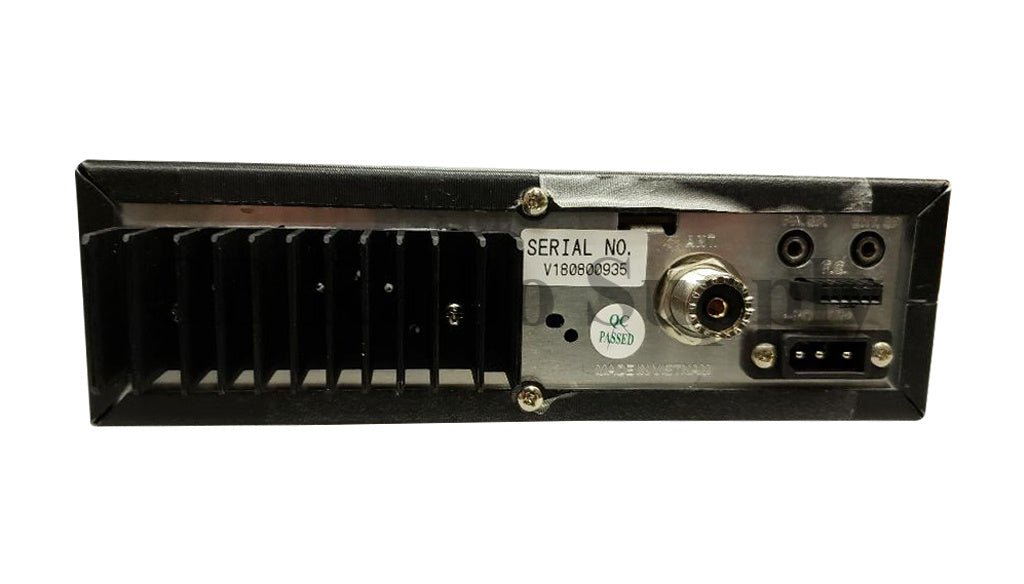

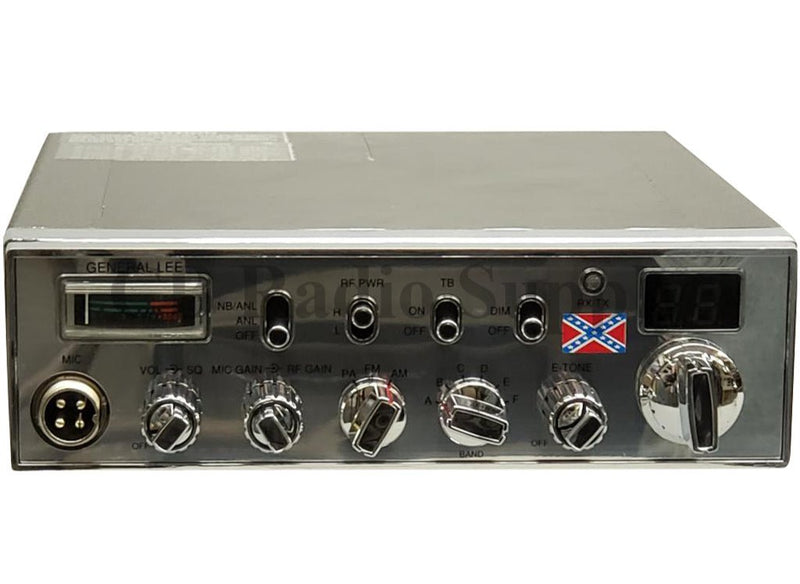

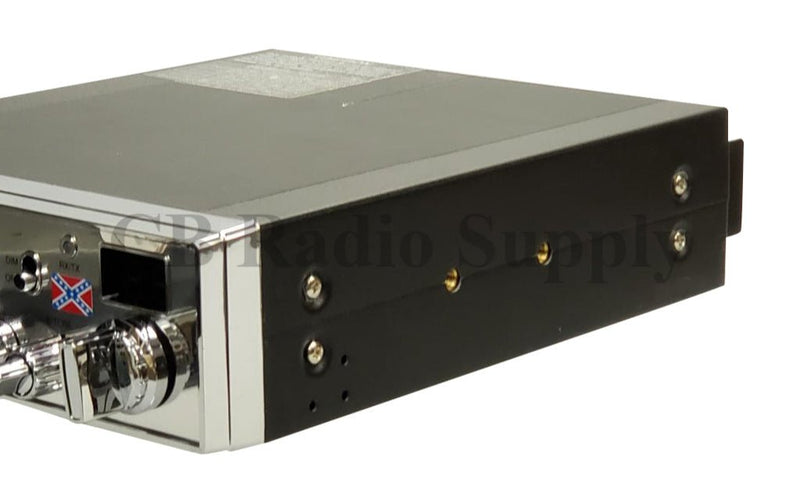

General Lee at a glance

• Modes: AM / FM / PA (three-mode operation)
• Power output: ~45W PEP (Bird), 30W RMS (Dosy) stock · Hi/Lo RF power switch with internal potentiometers
• Finals: Dual IRF-520 MOSFET (newer production)
• Frequency: 28.015 - 28.585 MHz · Six-band (A-F) rotary selector · +10 kHz switch
• Display: Blue LED channel readout · illuminated blue meter light · TX/RX indicator
• Filters: NB · ANL · combined NB/ANL switch · RF gain · MIC gain · Squelch
• Audio effects: Dual-control echo (level + time) · switchable talkback · PA mode
• Mic connector: 4-pin standard, front-panel mounted
• Antenna: SO-239 (accepts PL-259)
• Power: 13.8V DC · 3-pin power connector · 7A
• Dimensions: 9-1/4" L × 7-7/8" W × 2-3/8" H · 5.0 lb
• Warranty: 1-year Ranger factory

Stryker SR-A10 antenna at a glance

• Modeled after the U.S. Air Force Thunderbolt II lightning-rod design
• Available in mirror-mount configuration (bundled in this combo)
• 6-gauge solid copper coil element
• Coated in 100% silver plate for corrosion resistance and RF conductivity
• 10,000W rated power handling — well beyond any General Lee, tuned or amplified
• Extremely efficient high-Q coil
• Double-wall coil cover made from high-impact Mobay plastic
• 10" and 20" stainless steel shafts included
• 49" stainless steel whip
• Reduced static interference by design
• 2-year Stryker warranty · sold in bulk (no retail packaging)

DRX-3402 mirror mount at a glance

• Extra-large 2.50" wide mount for larger antennas
• .250" thick aircraft-quality extruded aluminum construction
• Driver Extreme Square-Lock hardware — carriage bolts seat completely in the bracket, install with a single wrench
• Stainless steel K-Lock nuts with encapsulated lock washers
• DX239 proprietary heavy-duty stud
• Stainless steel threaded female nut encased in ABS plastic support
• Stainless steel center stud inside a 1" plated aluminum hex base

DRX-1518 18 ft M213 coax at a glance

• 18 ft length — right size for cab-to-mirror-mount coax runs
• 50-ohm impedance (standard for CB/10m operation)
• M213 Quantum-Flex double-shielded construction
• 96% tinned copper braided shield
• 100% free-floating aluminum foil shield
• Ultra-low loss
• Super-flex jacket — easier to route through firewalls, tight bends, and cab pass-throughs than standard RG-8

Install notes and SWR

Always check SWR at the antenna install before running full transmit power. A properly tuned mirror-mount install with the SR-A10 should read below 1.5:1 across the band you plan to operate in. If SWR reads higher, adjust the antenna's tunable tip and re-check before transmitting extended carrier. If you'd rather have the whole install handled professionally, contact us — CB Radio Supply offers in-shop installation for local customers.

License required

The General Lee operates on the 10 meter amateur radio band (28 MHz) and requires a valid FCC amateur radio license to transmit. A Technician-class license covers 10m FM voice, which is the mode most General Lee operators use. See our 10 meter radio licensing page for full details.

Pro Tune & Alignment

Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.

Buy the components separately

Each item in this combo is also sold as a standalone product. Buy individually if you already have some of the pieces:

• General Lee 10 meter amateur radio
• Stryker SR-A10 CB / 10-meter antenna
• Driver Extreme DRX-3402 heavy-duty mirror mount
• Driver Extreme DRX-1518 18 ft M213 premium coax

Ready to order

Add the General Lee 10 Meter Radio + SR-A10 + DRX-3402 + DRX-1518 truck combo to your cart for the full install kit. If you'd rather upgrade audio instead of building a new install, see the General Lee audio combo. Or browse the full 10 meter radios collection.
