Texas Ranger TRE Top One + Hustler IC56 102″ Stainless Whip + 18′ RG8X Installation Kit — Full-Height Mobile CB Combo

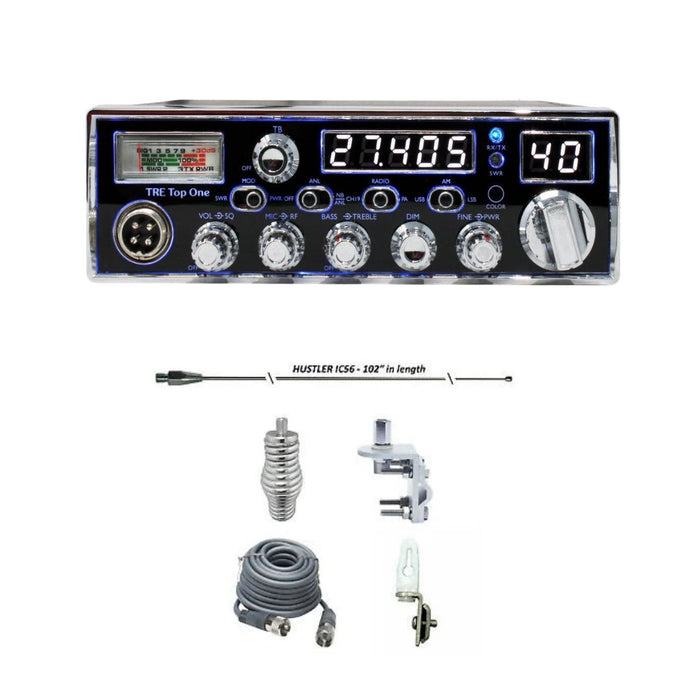

A ready-to-install full-height mobile CB combo built around a proper quarter-wave stainless whip. This bundle pairs the Texas Ranger TRE Top One AM/SSB CB radio with a Hustler IC56 102″ stainless steel whip and a complete installation kit — 18′ RG8X coax with PL-259 ends, a universal aluminum mount and stud, a 5″ pot-belly barrel spring, and a tie-down — everything needed to put a resonant full-size CB antenna on the vehicle.

A 102″ stainless whip is the reference-standard mobile CB antenna: it's very close to a physical ¼ wave at 27 MHz with no loading coil to introduce loss, so it delivers the efficiency and receive quiet you can't get out of a shorter loaded whip. Paired with the Top One's 4 W AM / 12 W PEP SSB output and a properly tuned mount, this setup is what serious over-the-road drivers run when talking range matters more than a low-profile antenna.

Texas Ranger TRE Top One AM/SSB CB Radio

• Compact AM/SSB CB radio — fits standard dash cubbies and overhead consoles
• 40 channels, 26.965–27.405 MHz, AM/USB/LSB modes plus PA
• PLL synthesis, ±0.001% frequency stability, white LED channel display and 6-digit frequency counter
• 4W AM / 12W PEP SSB (FCC Part 95 legal)
• 7-color touch-select faceplate LEDs, dimmer control
• Front-panel white meter for SWR, modulation, and power
• Variable RF power output, RF gain, mic gain
• Variable bass/treble receive tone control
• Adjustable talkback, NB/ANL, high-SWR warning light
• PA / radio / instant channel 19 switch
• 4-pin front microphone jack, Ranger SRA198 noise-cancelling dynamic mic included
• SO-239 antenna, 13.8 VDC, 7.25″ W × 9″ D × 2.25″ H, 3.55 lb
• Mounting bracket and power cord included
• Ranger USA factory warranty

Hustler IC56 102″ Stainless Steel Whip

• 102″ (8.5 ft) tapered stainless steel CB radio whip
• Very close to a full ¼ wave at 27 MHz — no loading coil, no coil loss
• Tapered from base to tip for wind-load handling and vibration control
• 3/8″ × 24 standard base thread — fits every common mount and spring
• Compatible with any standard CB radio antenna mount

Installation kit — 18′ RG8X coax, mount, barrel spring, tie-down

• 18 ft grey RG8X coax cable with PL-259 connectors on both ends
• Universal aluminum CB radio antenna mounting bracket with stud (3/8″ × 24 thread)
• 5″ pot-belly barrel spring — absorbs low-hanging obstacle impact and keeps the whip from snapping at the base
• Tie-down for high-speed and off-road stability
• All hardware included for a bolt-on install to a bed rail, mirror bracket, or roof channel

Install and tuning

SWR should be verified at antenna installation. A 102″ whip is highly sensitive to mount location and ground plane — a bed-rail mount over a flat metal truck bed gets you closer to a factory-clean 1.1:1 SWR than a mirror-bracket install on a plastic-heavy panel. Once mounted, check SWR across channels 1, 20, and 40 with an inline meter or antenna analyzer. If the low end is high and the high end is low, the whip is too long — trim in ¼″ increments. If the pattern is reversed, the whip is too short (uncommon with a fresh 102″).

Use the barrel spring at the base to protect the whip from parking-garage and low-clearance strikes, and set the tie-down at 60° or shallower so the whip drops back to vertical after a wind gust or a hard highway crosswind. Route the RG8X away from ignition wiring and alternator leads.

Shipping note

The 102″ whip ships in a long tube separately from the installation hardware, so you'll receive two packages. Both ship free to the lower 48 + DC — see the shipping details on the Top One radio listing.

Buy the components separately

Prefer to build the kit piece by piece or already own one of these components? The two anchor pieces are available on their own:

• Texas Ranger TRE Top One AM/SSB CB Radio
• Hustler IC56 102″ Stainless Steel Whip
• Hustler IC56 102″ Whip + 18′ RG8X Installation Kit (mount, spring, tie-down)

Recommended add-on

Pro Tune and Alignment — don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.

Licensing

CB radio operation in the United States falls under FCC Part 95 rules and does not require a license. All 40 channels of the Top One operate at the FCC-legal 4 W AM / 12 W PEP SSB power levels this radio is rated for. See the FCC personal radio services page for current CB rules.

Warranty

The TRE Top One is covered by Ranger USA's factory warranty — register at rangerusa.com/warranty-information or call 619-271-4035. CB Radio Supply does not offer an in-house warranty on the TRE Top One, and all Top One sales are final. The Hustler IC56 whip and installation-kit hardware are covered by their respective manufacturer warranties.

Questions about compatibility, licensing, or install? Contact CB Radio Supply — we work with Ranger USA and Hustler dealers every day.
