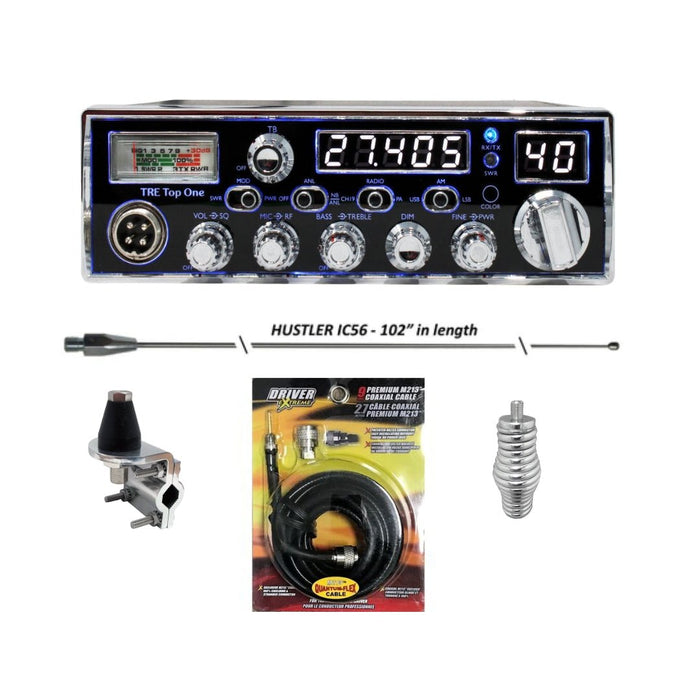

Texas Ranger TRE Top One + Hustler IC56 102″ Whip + DRX-3402 Heavy-Duty Mirror Mount + Heavy-Duty Barrel Spring + DRX-1518 Premium M213 Coax — Full-Height Premium Bundle

The heavy-duty, premium-hardware version of the full-height 102″ whip build. This bundle pairs the Texas Ranger TRE Top One AM/SSB CB radio and the Hustler IC56 102″ stainless steel whip with three commercial-grade upgrades: the DRX-3402 Driver Extreme Magnum heavy-duty mirror mount, a super heavy-duty barrel spring sized for tall antennas, and 18 feet of DRX-1518 M213 Quantum-Flex premium double-shielded coax.

Every piece is picked for real-world durability on a work truck, semi, or heavy pickup. The DRX-3402 bracket is aircraft-grade extruded aluminum, .250″ thick and 2.5″ wide — sized for the load a full-height whip transmits into the mount. The heavy-duty barrel spring is rated for antennas taller than 4 feet, so it actually damps a 102″ whip instead of letting it flex the mount. The DRX-1518 is 96% tinned-copper braid over 100% aluminum foil in an M213 jacket for low loss and quiet receive — a measurable step up from stock RG8X on the antenna feed.

Texas Ranger TRE Top One AM/SSB CB Radio

• Compact AM/SSB CB radio — fits standard dash cubbies and overhead consoles
• 40 channels, 26.965–27.405 MHz, AM/USB/LSB modes plus PA
• PLL synthesis, ±0.001% frequency stability, white LED channel display and 6-digit frequency counter
• 4W AM / 12W PEP SSB (FCC Part 95 legal)
• 7-color touch-select faceplate LEDs, dimmer control
• Front-panel white meter for SWR, modulation, and power
• Variable RF power output, RF gain, mic gain
• Variable bass/treble receive tone control
• Adjustable talkback, NB/ANL, high-SWR warning light
• PA / radio / instant channel 19 switch
• 4-pin front microphone jack, Ranger SRA198 noise-cancelling dynamic mic included
• SO-239 antenna, 13.8 VDC, 7.25″ W × 9″ D × 2.25″ H, 3.55 lb
• Mounting bracket and power cord included
• Ranger USA factory warranty

Hustler IC56 102″ Stainless Steel Whip

• 102″ (8.5 ft) tapered stainless steel CB radio whip
• Very close to a full ¼ wave at 27 MHz — no loading coil, no coil loss
• Tapered from base to tip for wind-load handling and vibration control
• 3/8″ × 24 standard base thread — fits the heavy-duty barrel spring included in this bundle
• Compatible with any standard CB radio antenna mount

DRX-3402 Driver Extreme Magnum Heavy-Duty Antenna Mirror Mount

• Extra-large 2.50″-wide bracket, .250″-thick aircraft-grade extruded aluminum — sized for the load a 102″ whip transmits into the mount
• Driver Extreme exclusive Square-Lock hardware — one-wrench install, no chance of the bolt spinning during tightening
• Custom stainless-steel carriage bolts with extended square shank that seats into the bracket
• Stainless K-Lock nuts with encapsulated lock washers — no lost washers on install
• Proprietary DX239 heavy-duty stud rated for full-size mobile antennas
• Threaded female nut in stainless, encased in ABS for insulation and support
• Stainless-steel center stud inside a 1″ plated-aluminum hex base

Super Heavy-Duty Barrel Spring

• Super heavy-duty spring specifically for antennas taller than 4 feet
• Sized right for a 102″ whip — the pot-belly springs sold with basic kits are undersized for this load
• Compatible with large aftermarket antennas including Monkey Made and Predator
• 3/8″ × 24 standard thread — matches the IC56 whip base and the DRX-3402 stud
• Rigid frame with maximum flexibility — absorbs low-hanging obstacle impact without sagging
• Stainless steel construction, tool-free installation

DRX-1518 Driver Extreme 18-Foot Premium M213 Coax

• 18 feet of M213 Quantum-Flex double-shielded coax with PL-259 connectors
• 50 Ω impedance for a matched feed to the whip and the Top One's SO-239 antenna port
• 96% tinned-copper braided shield
• Free-floating 100% aluminum foil shield — quiet on receive, low RF leakage
• Ultra-low signal loss vs. standard RG8X at 27 MHz — measurable on transmit power at the antenna feed point
• Right-sized for a mirror-mount-to-under-dash run in a full-size pickup or Class 8 tractor

Install and tuning

SWR should be verified at antenna installation. A 102″ whip is highly sensitive to mount location and ground plane — a mirror-bracket mount to bare metal on a heavy pickup or semi tractor is what the DRX-3402 is designed for. Once bolted down, ground the bracket to the vehicle chassis with a bonding strap if it isn't already contacting bare metal.

Check SWR across channels 1, 20, and 40 with an inline meter or antenna analyzer. If the low end reads high and the high end reads low, the whip is too long — trim in ¼″ increments. Aim for 1.1:1 to 1.3:1 across the CB band; that's realistic for a heavy-duty mirror-mount install on a real vehicle. Route the DRX-1518 cleanly, away from ignition wiring, alternator leads, and spark plug wires.

The heavy-duty barrel spring goes between the DRX-3402 stud and the whip base. Set the spring so the whip sits vertical at rest — a lean at rest becomes a bigger lean at highway speed.

Shipping note

The 102″ whip ships in a long tube separately from the DRX-3402 mount, barrel spring, and DRX-1518 coax, so you'll receive two packages. Both ship free to the lower 48 + DC — see the shipping details on the Top One radio listing.

Buy the components separately

Prefer to build the kit piece by piece or already own one of these components? Every component with a standalone listing is available on its own:

• Texas Ranger TRE Top One AM/SSB CB Radio
• Hustler IC56 102″ Stainless Steel Whip
• DRX-3402 Driver Extreme Magnum Heavy-Duty Antenna Mirror Mount
• DRX-1518 Driver Extreme 18-Foot Premium M213 Coax

Recommended add-on

Pro Tune and Alignment — don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.

Licensing

CB radio operation in the United States falls under FCC Part 95 rules and does not require a license. All 40 channels of the Top One operate at the FCC-legal 4 W AM / 12 W PEP SSB power levels this radio is rated for. See the FCC personal radio services page for current CB rules.

Warranty

The TRE Top One is covered by Ranger USA's factory warranty — register at rangerusa.com/warranty-information or call 619-271-4035. CB Radio Supply does not offer an in-house warranty on the TRE Top One, and all Top One sales are final. The Hustler IC56 whip is covered by its manufacturer warranty. The DRX-3402 mount and DRX-1518 coax are covered by Driver Extreme's manufacturer warranty. The heavy-duty barrel spring is covered by its manufacturer warranty.

Questions about compatibility, licensing, or install? Contact CB Radio Supply — we work with Ranger USA, Hustler, and Driver Extreme dealers every day.
