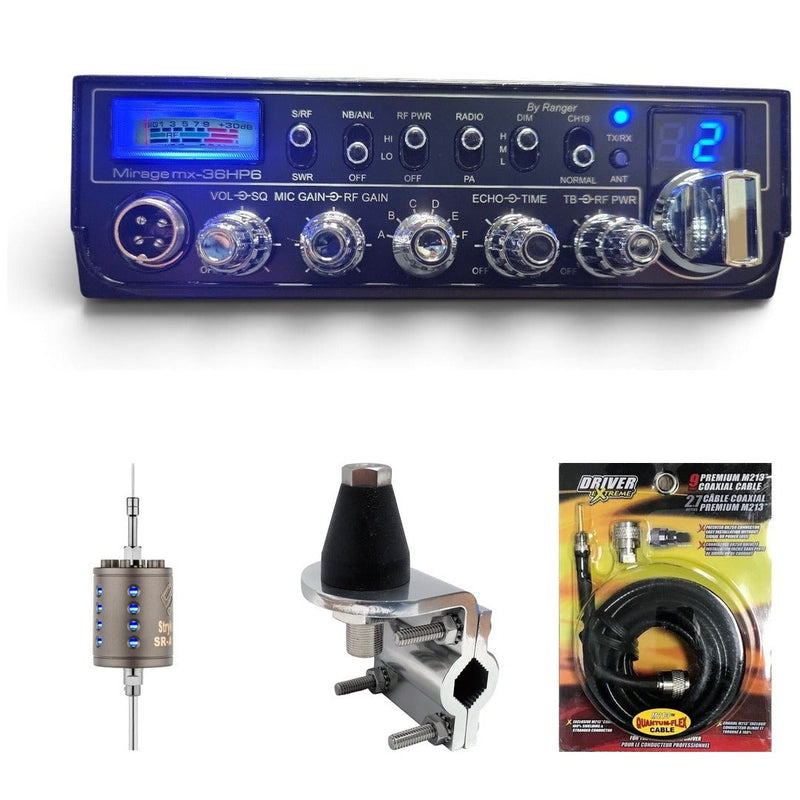

Mirage MX-36HP6 + SR-A10 + DRX-3402 + DRX-1518 — Complete 10-Meter Truck Install Combo

A complete over-the-road 10-meter install kit: the Mirage MX-36HP6 60W-PEP 10-meter amateur radio, the Stryker SR-A10 10-meter mobile antenna, the DRX-3402 heavy-duty magnum mirror mount, and 18 feet of DRX-1518 premium M213 super-flex coax. Everything you need to put a 10-meter mobile on the air with a properly matched antenna system.

Note: this is a 10-meter amateur radio. Operating it on-air requires an FCC amateur radio license (Technician-class minimum for 10-meter operation in the U.S.).

Why this combo

The MX-36HP6 is only as good as its antenna system. Feed 60 watts into a poorly matched CB whip cut for 27 MHz and you'll run high SWR and get modest range for the power expended. This kit pairs the MX-36HP6 with a 10-meter-tuned Stryker antenna on a heavy-duty mirror mount, using premium M213 coax rated well above the radio's output. All four pieces are matched for a clean, low-SWR install in the 28–29 MHz band.

Mirage MX-36HP6 60 Watt 10-Meter Amateur Radio

• 10-meter amateur transceiver — 28.765–29.205 MHz, 40 channels
• 60 Watts PEP AM output on the Ranger Communications chassis
• Built-in SWR meter, variable RF power, RF gain, and MIC gain
• ANL and Noise Blanker for cleaner receive in electrically noisy environments
• Adjustable Echo, Talkback with on/off switch
• Channel 9 & 19 priority, +10 KC switch, 3-position dimmer
• Front-panel 4-pin microphone jack, PA function and PA jack
• 13.8 VDC 3-pin power · 4W audio output into 8 Ω
• Compact Cobra 29–size chassis: 7-3/8″ W × 8-3/4″ D × 2-1/4″ H · 4.2 lb
• Includes Premium SRA-198 Noise-Canceling Microphone, mic clip, power cord, mounting bracket, hardware
• 1-year Ranger Communications manufacturer warranty

Stryker SR-A10 — 10-Meter / CB Mobile Antenna

• Dual-band 10-meter / 11-meter tuning — covers the MX-36HP6's 28.765–29.205 MHz range
• Fiberglass shaft with brass tunable tip for fine SWR adjustment at install
• Power handling well above the MX-36HP6's 60W output — long-life radiator
• SO-239 base connector, 3/8″ × 24 stud (fits the DRX-3402 mount)
• 2-year Stryker guarantee

DRX-3402 — Magnum Heavy-Duty Mirror Mount

• Double-slotted design for use on tractor mirrors, sport bars, and heavy-duty bracketry
• 3/8″ × 24 threading (fits the SR-A10 and most 10-meter mobile antennas)
• Chromed steel construction — corrosion-resistant for over-the-road duty
• Fits standard 3/4″–1″ mirror arms on Peterbilt, Kenworth, Freightliner, Volvo, Mack, and International tractors
• Includes hardware for installation

DRX-1518 — 18 ft Premium M213 Super-Flex Coax

• 18 ft length — right-sized for a mirror-mount to under-dash run in most trucks and full-size pickups
• Premium M213 double-shielded construction — low loss at 10-meter frequencies
• Super-flex jacket handles routing bends without kinking
• PL-259 connectors on both ends (matches the MX-36HP6 rear SO-239 and the SR-A10 antenna base)

Install and tuning

Antenna installation is where the whole system either sings or squawks. Every antenna needs to be SWR-checked at install — mounting location, ground plane, and coax routing all affect the match. We verify SWR at antenna installation on any local install; if you're installing yourself, an inline SWR meter or an antenna analyzer at the antenna is essential. Don't transmit into an unverified antenna system.

Coax should be routed away from ignition wiring, spark plugs, and alternator leads. Ground the antenna mount to bare vehicle metal for best radiation efficiency. Keep the coax run tidy — 18 ft is optimal for a mirror-mount install in a standard cab.

10-meter licensing

The 10-meter amateur band requires an FCC amateur radio license — Technician class or higher. See our 10-meter radio license guide for FCC and ARRL testing resources. This radio should not be operated on air until the operator holds a valid amateur radio license.

Recommended add-ons

• DRX-6560 4-pin noise-cancelling dynamic microphone — upgrade path from the stock mic (correct 4-pin wiring for the MX-36HP6)
• DRX-9010 Driver Extreme premium external speaker — pulls incoming voice off-axis in a noisy cab
• Pro tune and alignment — don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.

Buy the components separately

Prefer to build the bundle piece by piece or already own one of these? Every component is available on its own:

• Mirage MX-36HP6 60 Watt 10-Meter Amateur Radio
• Stryker SR-A10 10-Meter / CB Mobile Antenna
• DRX-3402 Magnum Heavy-Duty Mirror Mount
• DRX-1518 18 ft Premium M213 Super-Flex Coax

Warranty

The Mirage MX-36HP6 is backed by Ranger Communications' 1-year manufacturer warranty. The Stryker SR-A10 carries a 2-year Stryker guarantee. The DRX-3402 mount and DRX-1518 coax are covered by Driver Extreme's manufacturer warranty.

Questions about compatibility, licensing, or install? Contact CB Radio Supply — we work with amateur operators and Ranger dealers every day.

Frequently Asked Questions

Is this combo everything I need to get on the air?

Yes — plus your antenna mounting location and an amateur radio license for on-air transmit use. The combo includes the radio, antenna, mount, and coax. You provide the truck (or vehicle), the license, and about an hour with basic hand tools.

Do I need an amateur radio license?

Yes for transmit. The MX-36HP6 operates on the 10 meter amateur band and requires at least an FCC Technician-class amateur radio license for legal on-air transmit use. Receive-only monitoring does not require a license.

Will this fit a Peterbilt, Kenworth, Freightliner, Volvo, Mack, or International tractor?

Yes. The MX-36HP6 chassis matches the Cobra 29 footprint used in nearly every factory dash cutout, and the DRX-3402 mount fits standard 3/4"–1" mirror arms on all six of those brands.

Is 10,000 watts of antenna overkill for a 60 watt radio?

Overbuild is exactly the right call for a trucker antenna. A whip rated far above your actual output runs cool, tunes wide, and lasts longer under real-road stress. The SR-A10 was chosen specifically because it will outlive the truck.

Is 18 feet of coax enough for a Class 8 tractor?

Yes for a mirror-mount install on virtually every Class 7 or Class 8 cab-over or long-nose tractor. If you're mounting significantly farther (a stack on a sleeper roof, for example), consider our longer coax options.

Can I use a magnet mount instead of the DRX-3402 mirror mount?

Yes. If you'd prefer a temporary or non-drilled install, swap the SR-A10 + DRX-3402 for the SR-A10MM magnet-mount version. Contact us and we'll build a custom combo.

How is this different from the SR-655HPC+ install combo?

Same accessory recipe (SR-A10 + DRX-3402 + DRX-1518), different radio. The MX-36HP6 is AM-only and 60W; the SR-655HPC+ is AM/FM/SSB. If you want SSB and FM, choose the SR-655HPC+ combo. If you want a simpler, lower-cost AM-only 10 meter setup, this Mirage combo is the pick.

Should I add the audio combo too?

If you also want to fix cab audio and mic clarity, look at the Mirage MX-36HP6 Audio Combo — DRX-9010 external speaker + DRX-6560 noise-cancelling mic. Some customers order both bundles for a complete build.

Is this combo cheaper than buying the pieces separately?

Yes. This bundle is priced roughly 5% below the sum of the four components at their individual retail prices.

What's the warranty?

The MX-36HP6 carries a 1-year Ranger Communications warranty. The SR-A10 carries Stryker's 2-year antenna guarantee. The DRX-3402 and DRX-1518 carry the standard Driver Extreme accessory warranty.
