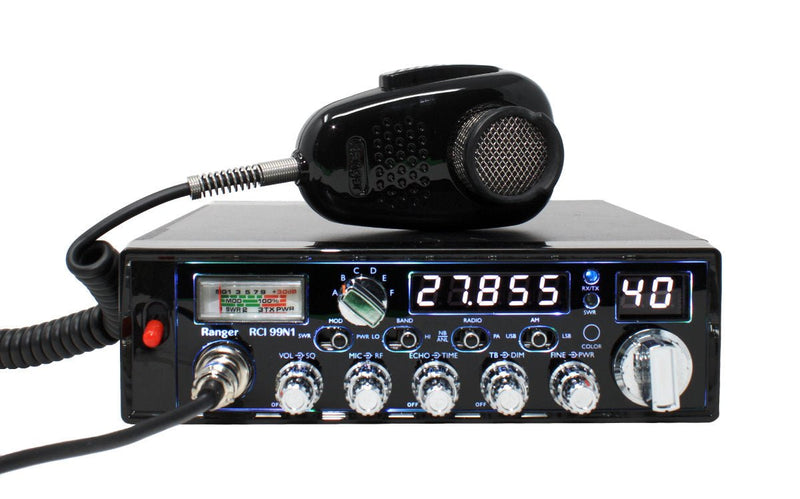

Ranger RCI-99N1 100W PEP AM/SSB 10-Meter Radio
100W PEP AM/SSB with a Switchable RF Deck
The Ranger RCI-99N1 combines 100W PEP high-power output with AM and single-sideband operation in a mobile chassis without a bottom-mounted heatsink. Its switchable RF deck and variable RF power control give licensed amateur operators two ways to manage transmitter output.
A five-digit frequency counter, receive-only fine clarifier, auto-calibrating SWR meter and high-SWR alert support everyday operation. Echo, variable talkback, RF gain and microphone gain put the main audio adjustments on the front panel.
RCI-99N1 Key Features
- 100W PEP high-power output: A switchable RF deck provides high- and low-power operation.
- Variable RF power: A dedicated front-panel control adjusts transmitter output.
- AM and SSB: AM, USB and LSB operating modes, plus a public-address function. This model does not include FM.
- Echo and variable talkback: Adjust the echo effect and monitor transmit audio.
- Five-digit frequency counter: White LED frequency and channel displays keep operating information visible.
- Multicolor faceplate and dimmer: Select the backlight color and adjust display brightness.
- Auto-calibrating SWR meter: Check the antenna system using the built-in meter and high-SWR warning light.
- Fine receive clarifier: Adjust received SSB audio without changing the transmitted frequency.
- Receive and microphone controls: RF gain, microphone gain, squelch and NB/ANL let you adjust the radio for operating conditions.
- Slimmer chassis: The design omits a bottom-mounted heatsink while retaining a rear heatsink.
Specifications at a Glance
| Model | Ranger RCI-99N1 |
|---|---|
| Radio class | 10-meter amateur mobile transceiver |
| Operating modes | AM, USB and LSB; PA function; no FM |
| High-power output | 100 watts PEP |
| Power controls | Switchable high/low RF deck and variable RF output |
| Frequency display | Five-digit counter with white LEDs |
| Clarifier | Fine adjustment, receive only |
| Meter and antenna warning | Multifunction panel meter, auto-calibrating SWR and high-SWR alert |
| Microphone connection | Standard Cobra-style four-pin |
| Power connector | Standard three-pin |
| Included microphone | Ranger SRA-198NC noise-cancelling microphone |
Installation and Antenna Setup
Check the available mounting space, including rear-heatsink, cable and microphone-plug clearance. Use the radio's specified fused power connection and follow its installation instructions. Match the antenna system to your operating frequencies and check SWR before transmitting. The radio does not include an antenna or coax.
For a mirror-mount installation, review Stryker SR-A10 antenna, Driver Extreme DRX-3402 mirror mount and Driver Extreme DRX-1518 18-foot M213 coax. For received audio, consider Driver Extreme DRX-9010 external speaker.
Complete RCI-99N1 Kits & Combos
- Ranger RCI-99N1 Audio Combo with DRX-9010 Speaker and Extra Mic adds an external speaker and extra microphone.
- Ranger RCI-99N1 Truck Install Combo with SR-A10 Antenna adds the antenna, mirror mount and 18-foot coax.
Amateur Radio Operation
The RCI-99N1 is a 10-meter amateur radio, not a license-free CB radio. Transmit only with the appropriate amateur radio license and within the frequencies, modes and power limits permitted by your license. See our 10-meter radio licensing guide.
Browse more Ranger 10-meter radios.
Warranty and Sales Terms
All sales Final
Warranty Information
Warranty and support is provided by Ranger USA phone at 619-271-4035.
We do not offer an in-house warranty on this product.
Pro Tune and Alignment
Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.
Frequently Asked Questions
Is the Ranger RCI-99N1 a CB radio?
No. The RCI-99N1 is a 10-meter amateur transceiver. Transmitting requires the appropriate amateur radio license and operation within your authorized frequencies, modes and power limits.
Does the RCI-99N1 have FM?
No. The RCI-99N1 operates on AM, USB and LSB and also has a public-address function.
How much power does the RCI-99N1 produce?
The high-power output rating is 100 watts PEP. The radio also provides a high/low RF-deck switch and a variable RF power control.
What is the difference between the RF-deck switch and variable RF power?
The RF-deck switch selects high- or low-power operation. The variable RF power control lets you adjust transmitter output within the selected setting.
Does the RCI-99N1 have a built-in SWR meter?
Yes. The radio includes an auto-calibrating SWR meter and a high-SWR warning light. Check the antenna system before transmitting and correct an excessive SWR condition before continuing.
Does the clarifier change transmit frequency?
No. The fine clarifier adjusts receive tuning without changing the transmitted frequency.
Which microphone is included?
The radio includes a Ranger SRA-198NC noise-cancelling microphone and uses a standard Cobra-style four-pin microphone connection.
Can I add an external speaker?
Yes. A standard CB external speaker can be used with the radio's external-speaker output. The audio combo adds a DRX-9010 speaker and an extra DRX-6560 microphone.
