Stryker SR-655HPC+ 10 Meter Radio, Stryker SR-A10, DRX-3402 Heavy Duty Antenna Mirror Mount, DRX-1518 18 FOOT PREMIUM M213, Combo
Stryker SR-655HPC+ 10 Meter Radio + SR-A10 Antenna Install Kit for Truckers — With Mirror Mount & Premium Coax

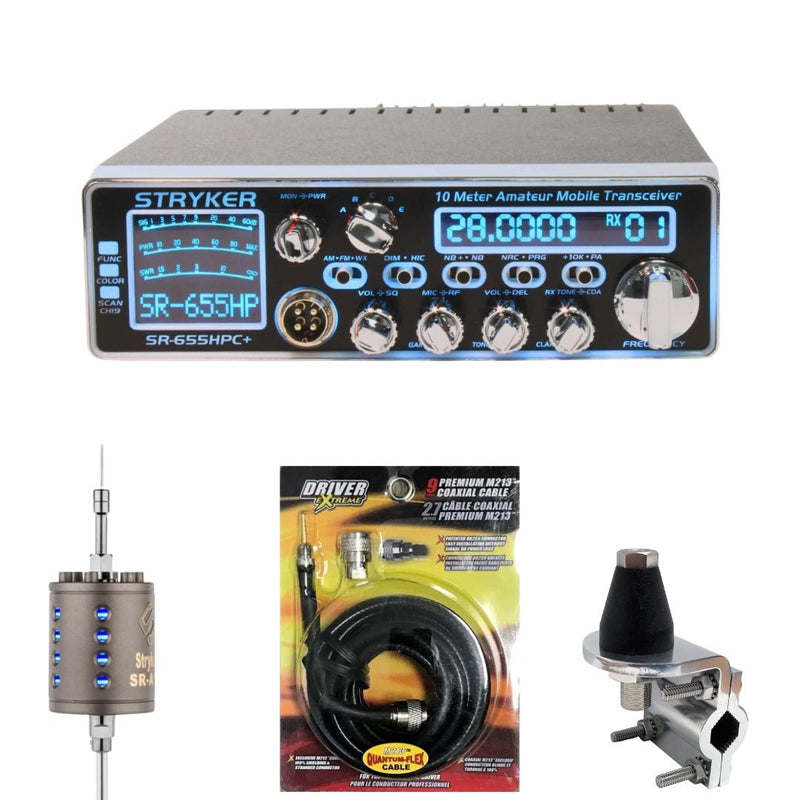

What's in this combo: Stryker SR-655HPC+ 10 Meter Radio + Stryker SR-A10 Antenna + DRX-3402 Heavy-Duty Mirror Mount + DRX-1518 18-Foot M213 Premium Coax. Everything you need for a full mobile 10-meter install, minus the mic and speaker.
Who This Combo Is For
This is the complete antenna install kit for licensed amateur radio operators putting a permanent 10-meter setup on a semi truck, pickup, or heavy-duty work vehicle. If you've already got a mic and speaker you're happy with — or you're building your kit piece by piece — this combo covers the radio and the entire RF chain from radio to antenna. Owner-operators, over-the-road drivers, and fleet mechanics running Peterbilt, Kenworth, Freightliner, Volvo, Mack, and International trucks with west-coast or standard mirror brackets will find this kit installs cleanly on either driver-side or passenger-side mirror mounts.
You'll need a valid FCC Technician-class amateur radio license to transmit on this radio — the SR-655HPC+ is a 10-meter ham radio, not a CB.
Already have an antenna install and just need audio? Check out our SR-655HPC+ combo with DRX-9010 speaker and DRX-6560 noise-cancelling mic instead.
Why We Picked These Four Products
- The Stryker SR-655HPC+ is Stryker's 100-watt PEP 10-meter radio. Short 9.25″ chassis fits factory truck radio cutouts, up-armored receiver rejects nearby-frequency interference, and NOAA weather channels come in on the same rig — no separate weather receiver needed.
- The Stryker SR-A10 antenna is modeled after the U.S. Air Force's Thunderbolt II — 6-gauge solid copper coated in 100% silver plate, capable of handling 10,000 watts. Overbuilt for your 100-watt radio, which means it runs cool, efficient, and forever. Reduces static interference and comes with a 2-year warranty.
- The DRX-3402 mirror mount is built from .250″ aircraft-quality extruded aluminum with a 2.50″ wide double-slotted design. The SR-A10 is a big, heavy antenna — this is the mount that won't flex or fatigue holding it up over a million highway miles. Stainless-steel Square-Lock hardware means one-wrench install and no lost washers.
- The DRX-1518 18-foot M213 coax is ultra-low-loss double-shielded cable that delivers RG213-grade performance in a mobile-friendly diameter. 96% tinned copper braid plus 100% aluminum foil shield means your 100 watts get from the radio to the antenna, not radiated into your cab wiring.
Buying these four separately, you'd have to match antenna power handling to radio output, verify the coax connector types, confirm the mount slot spacing fits the antenna stud, and figure out cable length for your truck's cab-to-mirror run. We've done that work. This combo drops in as a clean 100-watt install.
What's Included
| Component | Part Number | What It Does |
|---|---|---|
| 10 Meter Radio | Stryker SR-655HPC+ | 100W PEP, AM/FM, NOAA weather, PC programmable |
| Mobile Antenna | Stryker SR-A10 | Silver-plated 6-gauge copper, 10,000W handling, 49″ SS whip |
| Mirror Mount | DRX-3402 | .250″ aircraft aluminum, double-slotted, DX239 stud |
| Coax Cable | DRX-1518 | 18 ft. M213 Quantum-Flex, 50Ω, double-shielded, ultra-low loss |
Stryker SR-655HPC+ 10 Meter Radio
The Stryker SR-655HPC+ is a 100-watt PEP AM/FM 10-meter amateur radio built for mobile and base use. Short chassis (9.25″ x 7.875″ x 2.375″) fits most factory truck cutouts. Up-armored receiver rejects nearby-frequency interference, NOAA weather channels arrive with alert, and a 7-color LED display with dimmer handles nighttime driving.
Key features: 100W PEP · AM/FM · NOAA weather with alert · Variable Power & Talkback · PA function · 7-color display with dimmer · Advanced Clarifier · MIC/RF Gain · Auto-calibrating SWR · Digital multifunction meter · 6-digit frequency counter · Up-armored receiver · Six roger beeps · Channel scan · Instant channels 9/19 · PC programmable · 9.25″ x 7.875″ x 2.375″.
Stryker SR-A10 10 Meter Antenna — The "Thunderbolt II"
The Stryker SR-A10 is modeled after the antenna profile on the U.S. Air Force's Fairchild Thunderbolt II. Engineered for maximum efficiency and durability at high power, it's overbuilt for the SR-655HPC+'s 100 watts — which means it runs cool, keeps clean signal, and lasts through years of highway abuse. Silver-plated 6-gauge copper coil and stainless-steel whip stand up to rain, road salt, and truck-wash detergents.
Key features: Modeled after the U.S.A.F. Thunderbolt II · 6-gauge solid copper · 100% silver-plate coating · 10,000W power handling · Extremely efficient high-Q coil · Double-wall coil cover in high-impact Mobay plastic · 10″ & 20″ stainless steel shafts · 49″ stainless steel whip · Reduced static interference · 2-year warranty. Sold in bulk — no retail packaging.
DRX-3402 Heavy-Duty Antenna Mirror Mount
The DRX-3402 is a Driver Extreme heavy-duty mount purpose-built for large mobile antennas like the SR-A10. Extra-large 2.50″ wide mount from .250″ aircraft-quality extruded aluminum, with Driver Extreme's exclusive Square-Lock hardware for one-wrench installation. The double-slotted design gives you fitment flexibility across west-coast, standard, and heavy-duty pickup mirror brackets.
Key features: Extra-large 2.50″ wide mount · .250″ thick aircraft-quality extruded aluminum · Driver Extreme Square-Lock hardware · Stainless steel carriage bolts with extended square shank (one-wrench install) · Stainless steel K-Lock nuts with encapsulated lock washers · Proprietary DX239 heavy-duty stud · Stainless steel center stud inside a 1″ plated aluminum hex base · Threaded stainless female nut encased in ABS plastic.
DRX-1518 18-Foot M213 Premium Coax Cable
The DRX-1518 is 18 feet of Driver Extreme M213 Quantum-Flex coax — RG213-grade performance in a mobile-install cable diameter. Ultra-low-loss double shielding means the 100 watts your SR-655HPC+ makes actually get to the antenna instead of getting lost as heat in the cable or radiated as noise into your truck's electronics.
Key features: 18-foot length · 50-ohm impedance · Tinned copper braided shield (96% coverage) · Free-floating aluminum foil shield (100% coverage) · Ultra-low signal loss · M213 Quantum-Flex double-shielded construction · Mobile-friendly diameter.
Optional: 10 Meter Pro Tune and Alignment Service ($50)
For an extra $50 at checkout, we'll bench-tune your SR-655HPC+ before shipping. Our techs peak the finals for maximum clean output, align the receiver for best sensitivity, verify the frequency counter, and confirm all modes are performing to spec. Highly recommended for over-the-road drivers who need every dB of clean output they can get.
Installation Overview
A typical mobile install on a semi truck runs like this:
- Mount the DRX-3402 to the driver-side or passenger-side mirror bracket using the double-slotted alignment.
- Attach the SR-A10 antenna to the DX239 stud on the mount. Torque per manufacturer spec.
- Route the DRX-1518 coax from the mount, down through the cab body, and into your radio location. Avoid running parallel to power wiring — cross at 90° where possible.
- Connect the coax's PL-259 connector to the SR-655HPC+'s SO-239 antenna jack.
- Use the SR-655HPC+'s built-in auto-calibrating SWR meter to check the install. Adjust the SR-A10's whip length up or down as needed to bring SWR under 1.5:1 on your primary channel.
The SR-655HPC+'s built-in SWR meter means you don't need a separate meter or bench visit to dial the antenna in — you can tune the install yourself in a truck stop parking lot in about 10 minutes.
Frequently Asked Questions
What's included in this Stryker SR-655HPC+ install combo?
This combo includes four products: the Stryker SR-655HPC+ 100-watt 10-meter amateur radio, the Stryker SR-A10 silver-plated mobile antenna, the DRX-3402 heavy-duty mirror mount, and the DRX-1518 18-foot M213 Quantum-Flex coax cable. Everything you need to complete a mobile antenna install, minus the microphone and external speaker.
Do I need a license to use this 10 meter radio combo?
Yes. To legally transmit on the SR-655HPC+, you need at least an FCC Technician-class amateur radio license. Study materials are widely available online and the exam runs about $15. Many truckers upgrade from CB to a 10-meter license specifically to run higher-power radios like the SR-655HPC+.
Is the Stryker SR-A10 a good antenna for the SR-655HPC+?
Yes — the SR-A10 is our top recommendation for the SR-655HPC+ specifically. It's rated for 10,000 watts, so at the SR-655HPC+'s 100-watt output the antenna is running at 1% of its capacity — it stays cool, efficient, and delivers years of reliable transmission. The silver-plated 6-gauge copper coil is one of the most conductive antenna designs available for the 10-meter band.
Will the DRX-3402 mount fit my truck's mirror bracket?
The DRX-3402's double-slotted 2.50″ wide design fits the majority of west-coast and standard mirror brackets on Peterbilt, Kenworth, Freightliner, Volvo, Mack, and International trucks. It's also suitable for heavy-duty pickup mirror brackets. If you have a custom or non-standard bracket, contact us with your make/model and we'll confirm fitment.
Why is the DRX-1518 coax 18 feet — is that long enough?
For most truck cab installs, 18 feet is the sweet spot — long enough to route from a mirror-mounted antenna down through the cab body and to a radio mounted in the dash or overhead console, with enough service loop for door movement. If you're running a sleeper cab install with the radio in the bunk area, you may need a longer cable. Contact us if you need a custom length.
What SWR should I expect after installing this combo?
After proper installation and adjustment, you should see SWR of 1.5:1 or better across your primary operating range on the 10-meter band. The SR-A10's whip is adjustable — trim it slightly for higher-frequency operation or lengthen it for lower. The SR-655HPC+'s built-in auto-calibrating SWR meter lets you tune the install without a separate meter.
Can I add a microphone and speaker to this combo?
Yes. Many truckers pair this install combo with our DRX-6560 noise-cancelling dynamic microphone and DRX-9010 external speaker for a complete cab audio upgrade. If you want everything in one package instead, see our SR-655HPC+ combo with speaker and mic.
Does the SR-655HPC+ work as a CB radio?
No. The SR-655HPC+ is a 10-meter amateur (ham) radio, not a CB radio. It's designed for the 10-meter band (28 MHz) and is not FCC Type-Accepted for use on CB (27 MHz Citizens Band) frequencies in the United States. It requires an FCC Technician-class amateur radio license to transmit.
Do I need any additional parts to complete the install?
This combo includes the radio, antenna, mount, and coax. Depending on your specific install, you may also need: a fused power cable to wire the radio to your truck's battery (12V DC), a microphone (the SR-655HPC+ ships with a standard 4-pin mic; upgrading to the DRX-6560 is optional but recommended for cab noise), and an external speaker (the DRX-9010 is our top pick for trucks).
How much power supply do I need for a base station install of this combo?
Since the SR-655HPC+ pulls up to 20+ amps at 100W PEP transmit, you'll want a regulated DC power supply rated for at least 25–30 amps continuous for a home base install. For a truck install, wire directly to the battery through a properly-rated fuse — do not run it off the accessory circuit at full power.
Can I use this combo as a base station setup?
The SR-655HPC+ and DRX-1518 coax work fine in a base station configuration. However, the SR-A10 and DRX-3402 mirror mount are designed for mobile use. For a base install, you'd want a 10-meter vertical antenna or dipole cut for 28 MHz instead. Contact us if you want to build a base station combo and we'll recommend the right antenna and mount for your location.
