Cobra 29 LTD NightWatch AM/FM Audio Combo with DRX-9010 & DRX-6560

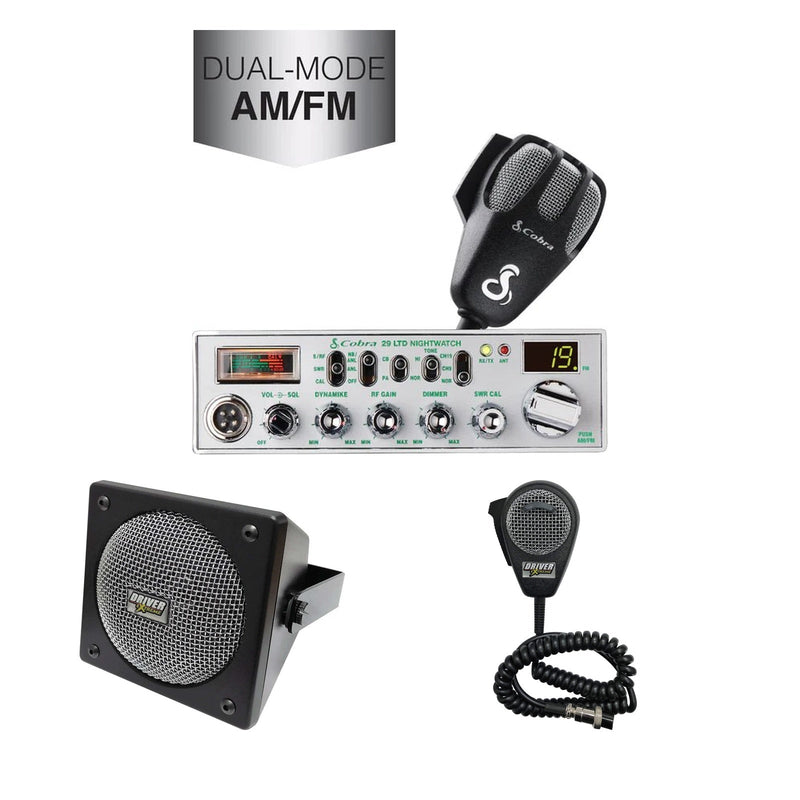

The Cobra 29 LTD NightWatch audio combo pairs the AM/FM radio with a Driver Extreme DRX-9010 external speaker and DRX-6560 noise-cancelling dynamic microphone. It is intended for an installation that already has a suitable CB antenna system and needs an external listening speaker plus an additional microphone.
Included components
| Component | Quantity |
|---|---|
| Cobra 29 LTD NightWatch AM/FM Radio | 1 |
| Driver Extreme DRX-9010 External Speaker | 1 |
| Driver Extreme DRX-6560 Four-Pin Microphone | 1 |
Speaker and microphone pairing
The DRX-9010 is an external listening speaker connected to the radio's external-speaker output, not the PA output. It lets you position received audio separately from the radio's built-in speaker.
The DRX-6560 is a dynamic noise-cancelling microphone with standard Cobra four-pin wiring, matching the NightWatch connection. It is an additional microphone; the radio's factory microphone remains included.
An antenna, antenna mount and coax are not included in this audio package. Use a suitable existing CB antenna system and check SWR before transmitting.
Key features
- NightWatch illuminated faceplate: Illuminated control lettering helps you identify settings in a dark cab.
- Variable dimmer: Adjust the faceplate, meter and channel-display brightness.
- AM and FM: Operate on all 40 CB channels; use AM to communicate with AM-only CB radios.
- Built-in SWR meter and calibration: Check the antenna system after installation and adjustment.
- Antenna warning indicator: Alerts you to a possible antenna-system problem.
- RF Gain and squelch: Adjust receiver sensitivity and the background-noise threshold.
- Dynamike control: Adjust microphone sensitivity.
- NB/ANL filtering: Noise blanker and automatic noise limiter controls help manage interference.
- Instant channels 9 and 19: Access these channels without turning through the full channel range.
- PA capability: Connect a separate PA speaker for public-address use.
Radio specifications
| Specification | Details |
|---|---|
| Model | Cobra 29 LTD NW / CCBP29LTNW |
| Radio type | Mobile CB transceiver |
| Modes | AM and FM |
| Channels / frequency range | 40 / 26.965–27.405 MHz |
| Factory-rated transmit power | 4 watts |
| Supply | 13.8 V DC nominal, negative ground |
| Microphone connection | Standard Cobra-wired four-pin dynamic microphone |
| Power connection | Standard three-pin |
| Antenna connection | SO-239 |
| Manufacturer-listed dimensions | 7.60 inches wide × 8.60 inches deep × 2.49 inches high |
Allow additional room for connectors, cable bends, the bracket and access to the controls. Do not connect the radio directly to a 24-volt supply.
Factory radio package
- Cobra 29 LTD NightWatch AM/FM radio
- Dynamic microphone with nine-foot cord
- Power cord
- Mounting bracket and hardware
- Microphone hanger and hardware
- Owner's manual
Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.
Other NightWatch options
- Cobra 29 LTD NightWatch AM/FM CB Radio
- Cobra 29 LTD NightWatch AM/FM Truck Combo with SR-A10 Antenna
Frequently asked questions
What is included in this audio combo?
One Cobra 29 LTD NightWatch AM/FM radio, one DRX-9010 external speaker and one DRX-6560 four-pin dynamic microphone, plus the radio's factory accessories.
Does the DRX-6560 plug directly into this radio?
Yes. The DRX-6560 uses standard Cobra four-pin wiring compatible with this NightWatch model.
Is the factory microphone still included?
Yes. The DRX-6560 is additional to the microphone included with the radio.
Is an antenna included?
No. This audio combo requires a suitable existing CB antenna system, mount and coax.
Where does the DRX-9010 speaker connect?
Connect it to the radio's external-speaker output, not the separate PA output.
Does this NightWatch radio have FM?
Yes. This is the new AM/FM Cobra 29 LTD NW, model CCBP29LTNW, with AM and FM operation on all 40 CB channels.
Is talkback included as a factory feature?
No. Talkback is not included as a factory feature on this NightWatch model. Any separately selected modification is additional to the standard radio.
