Cobra 29 LTD NightWatch AM/FM Truck Combo with SR-A10 Antenna
The Cobra 29 LTD NightWatch truck-install combo combines the AM/FM CB radio with a Stryker SR-A10 antenna, Driver Extreme DRX-3402 mirror mount and DRX-1518 18-foot M213 coax. It provides the radio and antenna-system components for a compatible mirror-mount installation.

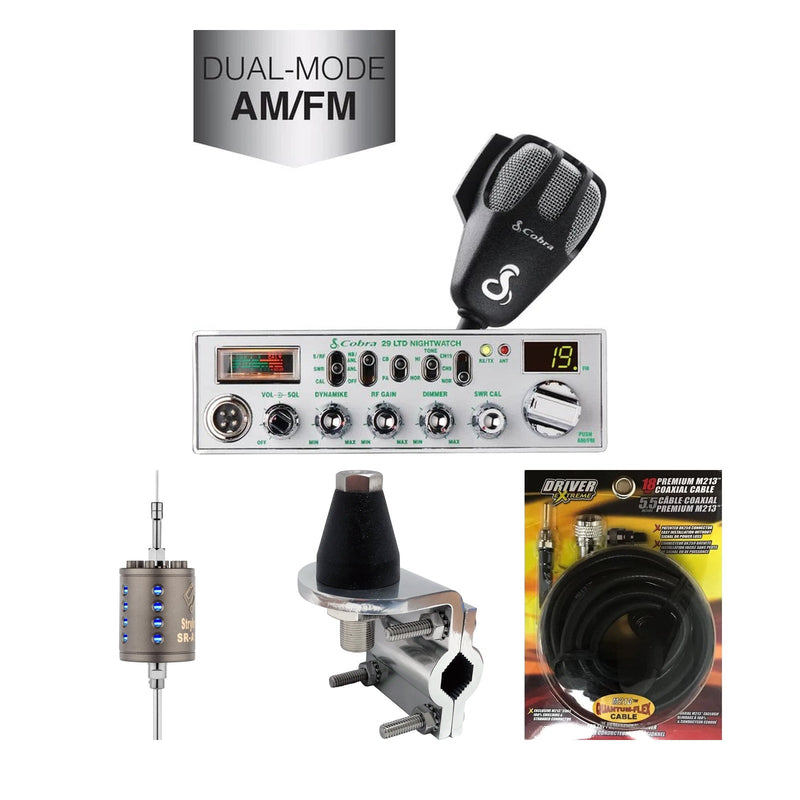

Included components
| Component | Quantity |
|---|---|
| Cobra 29 LTD NightWatch AM/FM Radio | 1 |
| Stryker SR-A10 Antenna | 1 |
| Driver Extreme DRX-3402 Mirror Mount | 1 |

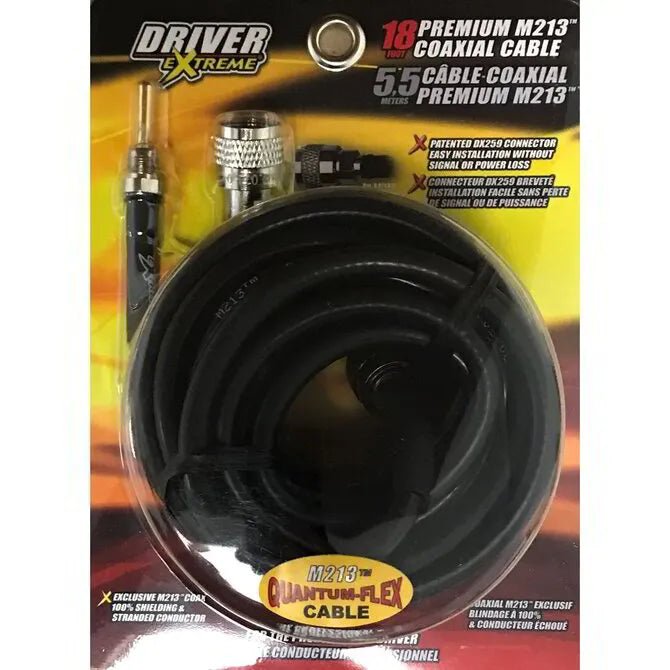

| Driver Extreme DRX-1518 18-Foot M213 Coax | 1 |
Installation and fitment
- Antenna: The SR-A10 uses a 3/8-24 mount connection and must be adjusted for CB operation after installation.
- Mount: Confirm that the DRX-3402 mirror-mount arrangement fits your vehicle's mounting surface and provides a suitable ground.
- Coax: Route the 18-foot DRX-1518 cable without sharp bends, pinch points or contact with moving parts.
- SWR: Use the radio's SWR calibration and meter to check the completed antenna installation before transmitting.
The factory microphone is included with the radio. This truck package does not add a DRX-6560 microphone or external speaker. Vehicle-specific brackets, grounding work or other hardware may be needed for your installation; the package is not a universal fit guarantee.
Key features
- NightWatch illuminated faceplate: Illuminated control lettering helps you identify settings in a dark cab.
- Variable dimmer: Adjust the faceplate, meter and channel-display brightness.
- AM and FM: Operate on all 40 CB channels; use AM to communicate with AM-only CB radios.
- Built-in SWR meter and calibration: Check the antenna system after installation and adjustment.
- Antenna warning indicator: Alerts you to a possible antenna-system problem.
- RF Gain and squelch: Adjust receiver sensitivity and the background-noise threshold.
- Dynamike control: Adjust microphone sensitivity.
- NB/ANL filtering: Noise blanker and automatic noise limiter controls help manage interference.
- Instant channels 9 and 19: Access these channels without turning through the full channel range.
- PA capability: Connect a separate PA speaker for public-address use.
Radio specifications
| Specification | Details |
|---|---|
| Model | Cobra 29 LTD NW / CCBP29LTNW |
| Radio type | Mobile CB transceiver |
| Modes | AM and FM |
| Channels / frequency range | 40 / 26.965–27.405 MHz |
| Factory-rated transmit power | 4 watts |
| Supply | 13.8 V DC nominal, negative ground |
| Microphone connection | Standard Cobra-wired four-pin dynamic microphone |
| Power connection | Standard three-pin |
| Antenna connection | SO-239 |
| Manufacturer-listed dimensions | 7.60 inches wide × 8.60 inches deep × 2.49 inches high |
Allow additional room for connectors, cable bends, the bracket and access to the controls. Do not connect the radio directly to a 24-volt supply.
Factory radio package
- Cobra 29 LTD NightWatch AM/FM radio
- Dynamic microphone with nine-foot cord
- Power cord
- Mounting bracket and hardware
- Microphone hanger and hardware
- Owner's manual
Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.
Other NightWatch options
- Cobra 29 LTD NightWatch AM/FM CB Radio
- Cobra 29 LTD NightWatch AM/FM Audio Combo with DRX-9010 & DRX-6560
Frequently asked questions
What is included in this truck combo?
One Cobra 29 LTD NightWatch AM/FM radio, one Stryker SR-A10 antenna, one DRX-3402 mirror mount and one DRX-1518 18-foot M213 coax cable, plus the radio's factory accessories.
Does this package include a microphone?
Yes. The factory radio microphone is included. No additional DRX-6560 microphone is included in this truck package.
Can the antenna be used for both AM and FM CB?
Yes. Both modes use the same CB frequency band. Install and adjust the antenna for CB operation.
Does the mount fit every truck?
No. Check the mirror support, mounting surface, grounding and clearance on your specific vehicle before choosing this package.
How long is the included coax?
The included DRX-1518 is an 18-foot M213 coax cable.
Do I need to adjust the antenna?
Yes. Check and adjust the antenna system's SWR after installation and before transmitting.
Is talkback included as a factory feature?
No. Talkback is not included as a factory feature on this NightWatch model. Any separately selected modification is additional to the standard radio.
