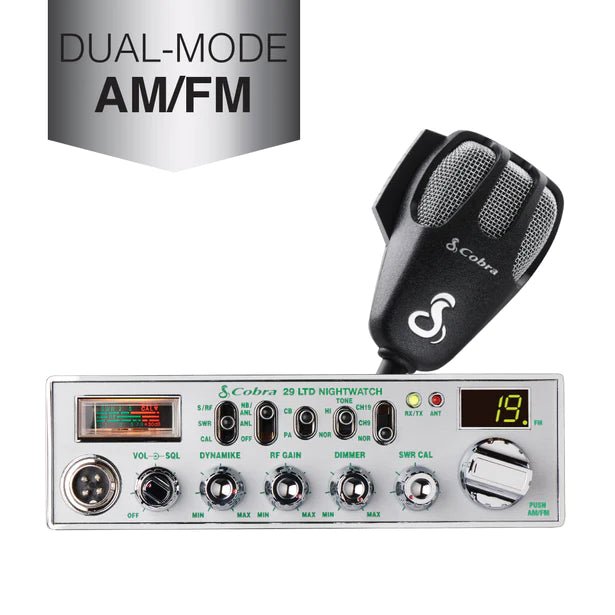

Cobra 29 LTD NightWatch AM/FM CB Radio
The Cobra 29 LTD NightWatch AM/FM is a mobile CB radio for drivers who want familiar manual controls with illuminated faceplate lettering. It combines 40-channel AM/FM operation, a built-in SWR meter and adjustable receiver controls in the classic Cobra 29 format.
Key features
- NightWatch illuminated faceplate: Illuminated control lettering helps you identify settings in a dark cab.
- Variable dimmer: Adjust the faceplate, meter and channel-display brightness.
- AM and FM: Operate on all 40 CB channels; use AM to communicate with AM-only CB radios.
- Built-in SWR meter and calibration: Check the antenna system after installation and adjustment.
- Antenna warning indicator: Alerts you to a possible antenna-system problem.
- RF Gain and squelch: Adjust receiver sensitivity and the background-noise threshold.
- Dynamike control: Adjust microphone sensitivity.
- NB/ANL filtering: Noise blanker and automatic noise limiter controls help manage interference.
- Instant channels 9 and 19: Access these channels without turning through the full channel range.
- PA capability: Connect a separate PA speaker for public-address use.
Radio specifications
| Specification | Details |
|---|---|
| Model | Cobra 29 LTD NW / CCBP29LTNW |
| Radio type | Mobile CB transceiver |
| Modes | AM and FM |
| Channels / frequency range | 40 / 26.965–27.405 MHz |
| Factory-rated transmit power | 4 watts |
| Supply | 13.8 V DC nominal, negative ground |
| Microphone connection | Standard Cobra-wired four-pin dynamic microphone |
| Power connection | Standard three-pin |
| Antenna connection | SO-239 |
| Manufacturer-listed dimensions | 7.60 inches wide × 8.60 inches deep × 2.49 inches high |
Allow additional room for connectors, cable bends, the bracket and access to the controls. Do not connect the radio directly to a 24-volt supply.
Factory radio package
- Cobra 29 LTD NightWatch AM/FM radio
- Dynamic microphone with nine-foot cord
- Power cord
- Mounting bracket and hardware
- Microphone hanger and hardware
- Owner's manual
Antenna and accessory options
The radio needs a properly installed CB antenna system before transmitting. AM and FM use the same CB band, so switching modes does not require a separate antenna.
- External audio: Pair the Driver Extreme DRX-9010 External Speaker with the radio's external-speaker output.
- Additional microphone: The Driver Extreme DRX-6560 Four-Pin Microphone uses standard Cobra four-pin wiring.
- Antenna installation: The Stryker SR-A10 Antenna, Driver Extreme DRX-3402 Mirror Mount and Driver Extreme DRX-1518 18-Foot M213 Coax are available separately or in the truck package.
Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.
Complete NightWatch kits and combos
- Cobra 29 LTD NightWatch AM/FM Audio Combo with DRX-9010 & DRX-6560
- Cobra 29 LTD NightWatch AM/FM Truck Combo with SR-A10 Antenna
Frequently asked questions
Does this NightWatch radio have FM?
Yes. This is the new AM/FM Cobra 29 LTD NW, model CCBP29LTNW, with AM and FM operation on all 40 CB channels.
What does NightWatch illuminate?
NightWatch illuminates the control lettering on the faceplate. The dimmer adjusts the faceplate, signal meter and channel-display brightness.
Can it communicate with an AM-only CB radio?
Yes. Select AM and the same channel as the other radio. For FM conversations, both radios must support and use FM on the same channel.
Does FM need a different CB antenna?
No. AM and FM use the same CB frequency band. Use a suitable CB antenna system and check its SWR after installation.
What microphone connection does it use?
It uses a standard Cobra-wired four-pin dynamic microphone connection. The factory microphone is included.
Can I connect an external speaker?
Yes. A standard CB external speaker can be connected to the radio's external-speaker output. Use the separate PA output only for a PA speaker.
Is talkback included as a factory feature?
No. Talkback is not included as a factory feature on this NightWatch model. Any separately selected modification is additional to the standard radio.
Will it fit my truck's radio opening?
Cobra lists the NightWatch at 7.60 inches wide, 8.60 inches deep and 2.49 inches high. Measure the opening and allow extra room for the bracket, plugs and cables.
Which package should I choose?
Choose the radio alone if you already have the accessories you need. The audio combo adds a DRX-9010 speaker and DRX-6560 microphone; the truck combo adds an SR-A10 antenna, DRX-3402 mount and DRX-1518 coax.
