President Walker IV FCC AM/FM CB Radio + Stryker SR-A10 Antenna + DRX-3402 Heavy-Duty Mirror Mount + DRX-1518 18-Foot Premium M213 Coax Combo

President Walker IV FCC + Stryker SR-A10 Antenna Install Combo for Truckers

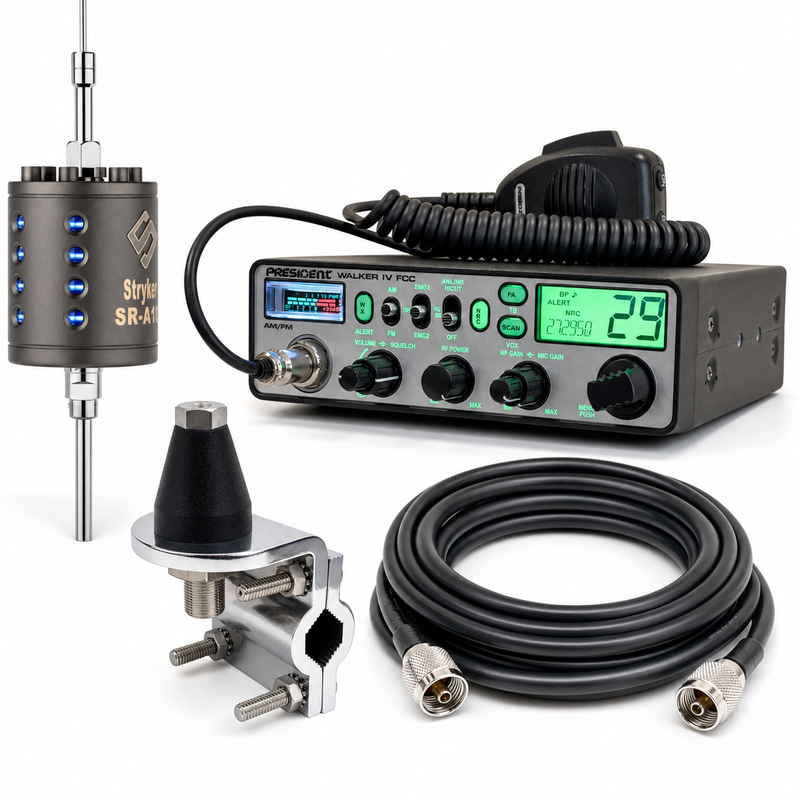

What's in this combo: President Walker IV FCC AM/FM CB Radio + Stryker SR-A10 49″ Trucker CB Antenna + DRX-3402 Magnum Double-Slotted Heavy-Duty Mirror Mount + DRX-1518 18-Foot Premium M213 Coax Cable. A complete truck antenna install kit — everything you need to mount, tune, and run the Walker IV FCC in a semi cab, pickup, or heavy-duty work truck.

Who This Combo Is For

This combo is built for owner-operators, fleet drivers, and DIY installers who need a factory-quality CB install in their truck without piecing it together from four different vendors. The Walker IV FCC fits standard OEM radio cutouts in Peterbilt, Kenworth, Freightliner, Volvo, Mack, and International cabs. The Stryker SR-A10 is the "Thunderbolt II" — a 49-inch, 1000-watt-handling trucker antenna designed to survive the mirror-mount vibration and highway wind loads that snap lesser antennas. The DRX-3402 heavy-duty double-slotted mirror mount fits nearly every truck west-coast mirror bracket, and the DRX-1518 gives you 18 feet of premium M213 mini-8 coax — enough length for a mirror-to-cab run in almost any semi cab configuration.

Why We Picked These Four Products

• The President Walker IV FCC is the newest generation of the Walker line and the direct successor to the President Walker III — same OEM truck fit, but with AM/FM 40-channel operation, NOAA weather channels with weather alert, dedicated P-Channels (P1–P5), Noise Reduction Circuit, Glow Mode, VOX, ASC, built-in SWR meter, SWR protection, and a front USB-C charging port. Built-in SWR meter is critical for this combo — you can tune the antenna install without a separate meter.
• The Stryker SR-A10 "Thunderbolt II" is the antenna truckers keep coming back to. 49-inch fiberglass and stainless design, 1,000-watt power handling, and a 2-year warranty. Broadband tuning covers CB and 10-meter, so if you ever upgrade to a 10-meter radio down the road, the same antenna carries over.
• The DRX-3402 Magnum mirror mount is a double-slotted, heavy-duty stainless mirror mount built for semi truck west-coast mirror brackets. Double-slotted means it fits a wider range of bracket widths without shimming.
• The DRX-1518 18-foot M213 coax is premium M213 mini-8 coax with soldered PL-259 connectors — heavier-duty than the RG-8X most kits ship with, cut to 18 feet for typical semi mirror-to-cab runs.

Buying these four separately means picking through spec sheets to match antenna handling to coax loss, verifying the mirror mount fits your bracket width, and confirming coax length reaches from your mirror to your cab. We've done that work.

What's Included

Also included: Walker IV FCC ships with its stock 6-pin hand mic, power cord, mounting bracket, and mic clip. SR-A10 ships with its 5/8-wave whip and base assembly. DRX-3402 ships with mounting hardware. DRX-1518 is pre-terminated with PL-259 connectors on both ends.

President Walker IV FCC CB Radio

The President Walker IV FCC is the newest generation of the Walker line and the direct successor to the popular President Walker III. It keeps the classic OEM truck-CB form factor that fits cleanly in factory truck cubbies, radio cutouts, and overhead compartments across Peterbilt, Kenworth, Freightliner, Volvo, Mack, and International semi trucks. The built-in SWR meter is the feature that matters most for this install combo — you can tune the SR-A10 against the DRX-1518 coax without needing a separate SWR meter, right from the driver's seat.

Key features: 40-channel AM/FM · NOAA weather channels with weather alert · Glow Mode adjustable backlighting · Noise Reduction Circuit (NRC) DSP filter · 5 dedicated P-Channels (P1–P5, one-touch channel access) · Automatic Squelch Control (ASC) · VOX hands-free operation · Built-in SWR meter · SWR protection · Front USB-C charging port · 6-pin electret front mic connector · OEM truck size — fits factory cubbies and overhead compartments.

Stryker SR-A10 Antenna — The "Thunderbolt II"

The Stryker SR-A10 is the antenna most seasoned truckers eventually settle on. A 49-inch fiberglass and stainless steel design rated for 1,000 watts of power handling, broadband-tuned for CB (26.965 MHz–27.405 MHz) and 10-meter operation, backed by a 2-year warranty. Fiberglass shaft flexes with mirror vibration and wind load instead of snapping like some all-metal whips, and the stainless base and whip resist corrosion in road-salt states. Broadband tuning means one antenna handles both this CB radio and any future 10-meter upgrade without swapping hardware.

Specifications: 49″ overall length · Fiberglass shaft with stainless base and whip · 1,000-watt power handling · Broadband CB and 10-meter coverage · 3/8″-24 base thread (industry standard) · 2-year warranty.

DRX-3402 Magnum Heavy-Duty Mirror Mount

The DRX-3402 Magnum is a double-slotted, heavy-duty stainless steel mirror mount purpose-built for semi truck west-coast mirror brackets. The double slot means it fits a wide range of bracket widths without shims or spacers — one part, most trucks. Stainless construction means it survives salt, rain, and years of highway wear without rusting.

Specifications: Stainless steel construction · Double-slotted for wide bracket compatibility · Includes SO-239 antenna stud · Mounting hardware included · Fits standard semi west-coast mirror brackets.

DRX-1518 18-Foot M213 Premium Coax Cable

The DRX-1518 is 18 feet of premium M213 mini-8 coaxial cable — a heavier-duty alternative to the standard RG-8X coax most starter kits include. Pre-terminated with soldered PL-259 connectors on both ends, so you don't have to solder or crimp anything at install time. 18 feet is the right length for a mirror-to-cab run in almost any semi cab configuration.

Specifications: 18 ft. length · M213 mini-8 coaxial cable · Soldered PL-259 connectors on both ends · 50-ohm impedance · Lower loss than standard RG-8X at 27 MHz.

Installation Overview

1. Mount the DRX-3402 mirror mount to your driver-side or passenger-side west-coast mirror bracket using the included stainless hardware.
2. Thread the Stryker SR-A10 base onto the mirror mount's SO-239 stud. Confirm it's tight and grounded to the mirror bracket.
3. Route the DRX-1518 coax from the antenna base down through the cab door seal (or through an existing grommet) to the radio location. Avoid running coax parallel to power wiring where possible.
4. Connect the coax to the antenna base and to the Walker IV FCC's SO-239 rear connector.
5. Wire the Walker IV FCC to switched 12V and ground using the included power cord.
6. Check SWR using the Walker IV FCC's built-in SWR meter. Adjust the SR-A10 tip (loosen the tip screw, extend or shorten, retighten) until SWR reads 1.5:1 or below on channel 20. Recheck on channels 1 and 40 — target under 2.0:1 across the band.

SR-A10 tuning is straightforward but critical: an untuned antenna wastes transmit power and can eventually damage the radio's finals. If you'd rather leave the tuning to us, add the Pro tune and alignment option at checkout.

Available upgrades and options

• Pro Tune & Alignment. Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.

Other Walker IV FCC Kits

• Walker IV FCC — radio only
• Walker IV FCC + DIGIMIKE + DRX-9010 Audio Combo — 6-pin noise-reducing mic with external speaker
• Walker IV FCC + BT Mike Bluetooth Combo — hands-free Bluetooth mic for hands-free-law states

Frequently Asked Questions

What's included in this Walker IV FCC antenna install combo?
This combo includes four products: the President Walker IV FCC 40-channel AM/FM CB radio, the Stryker SR-A10 49″ trucker antenna, the DRX-3402 heavy-duty double-slotted mirror mount, and the DRX-1518 18-foot premium M213 mini-8 coax cable. Radio ships with its stock 6-pin hand mic, power cord, and mounting bracket. Coax comes pre-terminated with PL-259 connectors on both ends.

Does this combo include a microphone?
Yes — the Walker IV FCC ships with its stock 6-pin wired hand mic in the box. This combo is an antenna install kit, so it doesn't include an aftermarket upgrade mic. If you want a mic upgrade, see the Walker IV FCC + DIGIMIKE + DRX-9010 audio combo or the Walker IV FCC + BT Mike Bluetooth combo.

Will the DRX-3402 mirror mount fit my truck?
The DRX-3402 is a double-slotted heavy-duty mirror mount designed for standard semi truck west-coast mirror brackets — it fits nearly every Peterbilt, Kenworth, Freightliner, Volvo, Mack, and International cab out of the box. The double-slot design accommodates a wide range of bracket widths without shims. If you have an unusual bracket configuration, contact us before ordering.

Is 18 feet of coax enough for my truck?
For almost all semi cabs, yes. 18 feet is enough to route from either west-coast mirror down through the door seal or firewall grommet and reach a radio mounted in the overhead cubby, dash cubby, or console. If you need more length for an unusual routing path, contact us before ordering — we stock longer coax runs too.

Why the DRX-1518 M213 coax instead of RG-8X?
M213 mini-8 coax is heavier-duty than RG-8X, with lower loss at 27 MHz — more of your transmit power reaches the antenna and more receive signal reaches the radio. The soldered PL-259 connectors on the DRX-1518 are also more reliable than crimped connectors under vibration.

How do I tune the SR-A10?
Use the Walker IV FCC's built-in SWR meter. Set the radio to channel 20, key up briefly, and read SWR. If it's above 1.5:1, loosen the tip screw on the SR-A10 whip, extend or shorten the tip a small amount (start with about 1/8″), retighten, and re-key. Repeat until SWR reads 1.5:1 or lower on channel 20, then confirm SWR stays under 2.0:1 on channels 1 and 40. Full instructions ship with the antenna. If you want a professional tune, add the Pro tune and alignment option at checkout.

Does the Stryker SR-A10 work for 10-meter as well as CB?
Yes. The SR-A10 is broadband-tuned for both the CB band (26.965–27.405 MHz) and the 10-meter amateur band (28–29.7 MHz). If you upgrade to a 10-meter radio down the road, the antenna carries over.

How is the Walker IV different from the Walker III?
The Walker IV keeps the classic Walker sound, layout, and OEM truck form factor drivers know, and adds AM/FM operation on all 40 channels, Glow Mode adjustable backlighting, a Noise Reduction Circuit for voice audio, 5 dedicated P-Channels (P1–P5), SWR protection, Automatic Squelch Control, VOX hands-free operation, a front USB-C charging port, and NOAA weather channels with weather alert. Same OEM fit, more capability. See the Walker III for reference.

Do I need any tools not included in the combo?
Yes. You'll need basic hand tools: an open-end wrench for the antenna base, a Phillips screwdriver for the mirror-mount hardware, wire strippers or a razor if you need to trim coax routing paths, and electrical tape or coax weatherproofing tape for the antenna base junction. Nothing exotic.

Does this combo ship free?
Yes. This combo ships free to the United States lower 48 and DC.

Where to Buy the Walker IV FCC + SR-A10 Antenna Install Combo

Order the Walker IV FCC + Stryker SR-A10 antenna install combo at CB Radio Supply. Ships free to the United States lower 48 and DC. Every combo is inspected before it leaves our shop. Questions? Contact us.
