SuperStar SS-88HL Truck Install Combo with SR-A10 Antenna
SuperStar SS-88HL Truck-Install Combo: Antenna, Mount and 18-Foot Coax
Start a mirror-mount 10-meter installation with the SuperStar SS-88HL AM/FM/SSB 10-Meter Radio, Stryker SR-A10 antenna, Driver Extreme DRX-3402 heavy-duty mount and DRX-1518 18-foot coax. This package supplies the radio and antenna-system components; installation and adjustment are completed for your vehicle.

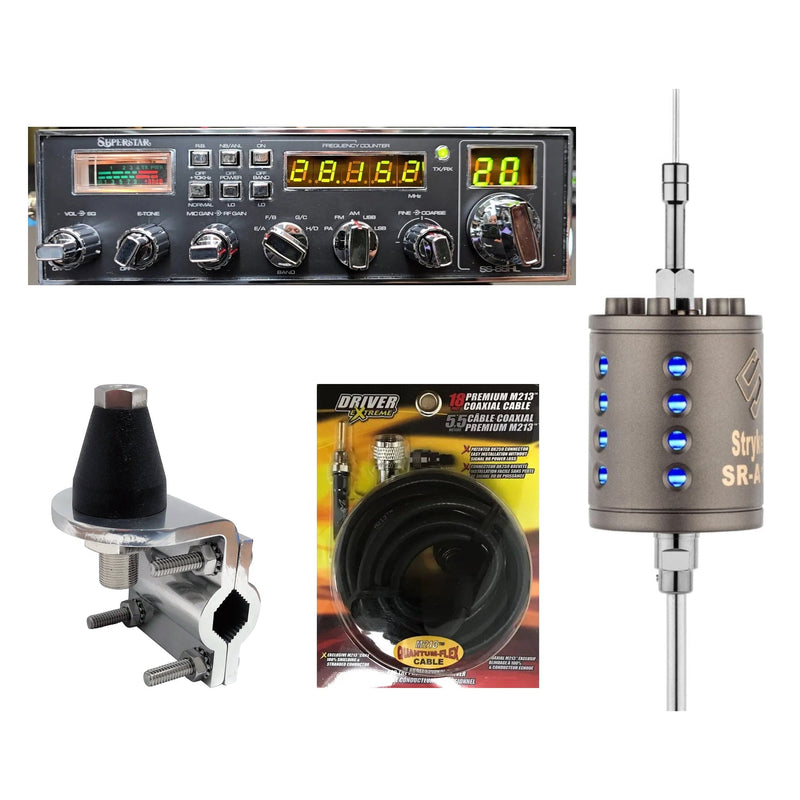

Included Components
| Item | Quantity | Role |
|---|---|---|
| SuperStar SS-88HL AM/FM/SSB 10-Meter Radio | 1 | AM, FM, USB and LSB amateur radio with frequency counter and high/low power |

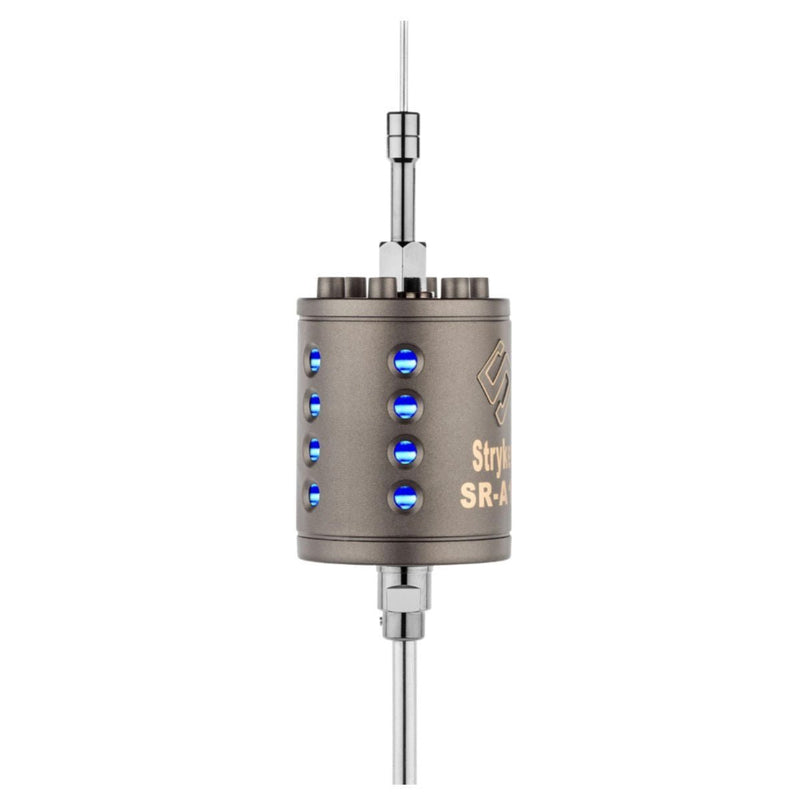

| Stryker SR-A10 Antenna | 1 | Mobile antenna for the 10-meter installation |

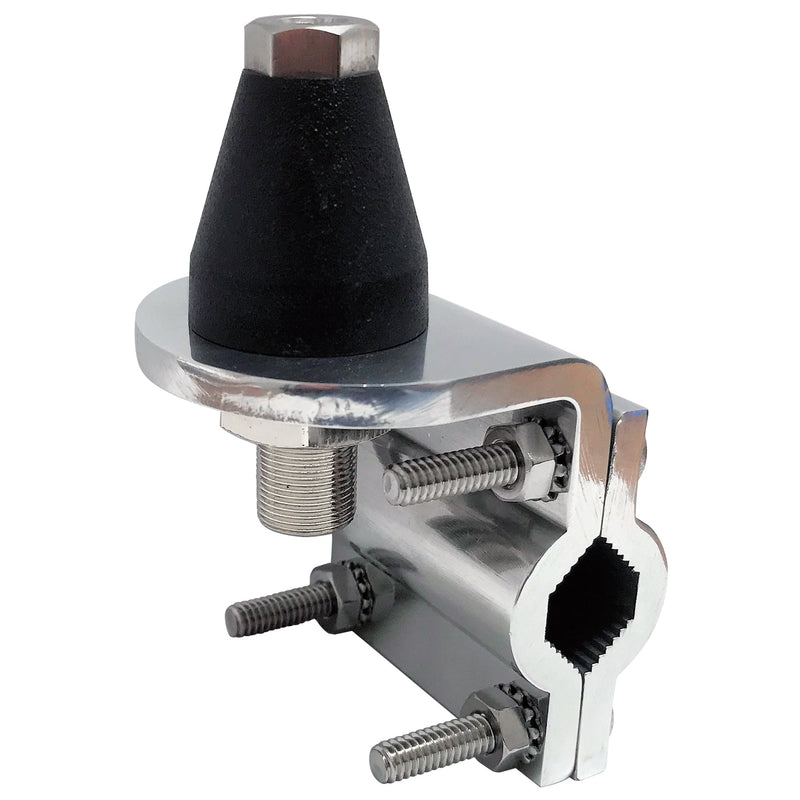

| Driver Extreme DRX-3402 Heavy-Duty Mirror Mount | 1 | Heavy-duty mirror mount with antenna stud |

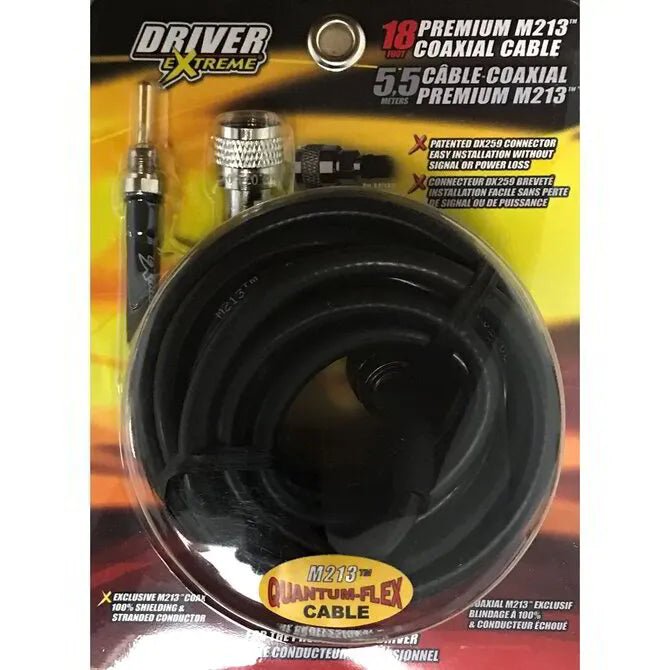

| Driver Extreme DRX-1518 18-Foot M213 Coax | 1 | 18-foot coax cable connecting radio and antenna mount |

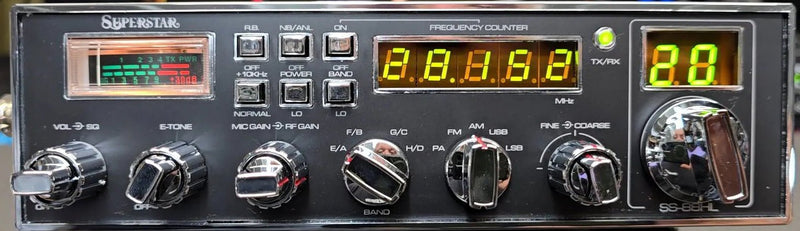

SS-88HL Radio Features
- AM, FM, upper sideband and lower sideband operation, plus PA mode.
- High/low RF power selection; manufacturer-rated output of 10 watts AM/FM and 25 watts PEP SSB.
- Five-digit front-panel frequency counter with its own on/off switch.
- Dual-control echo with talkback during echo operation.
- NB/ANL receive-noise controls and a switchable roger beep.
- Fine and coarse clarifier controls and a standard four-pin microphone jack.
Radio Specifications
| Manufacturer-rated output | 10 watts AM/FM; 25 watts PEP SSB |
|---|---|
| Frequency range | 28.315 to 28.755 MHz |
| Channels | 40 |
| Input voltage | 13.8V DC nominal |
| Clarifier ranges | Fine: 1.5 kHz, receive only; coarse: 5.0 kHz, receive and transmit |
| Frequency shift | +10 kHz |
| Radio dimensions | 2-3/8″ H × 7-7/8″ W × 9-1/4″ D |
| Radio weight | 5 lb |
| Antenna connector | UHF, SO239 |
Installation Checklist
- Check that the DRX-3402 fits the chosen mirror arm and that the antenna has adequate clearance.
- Provide a sound grounding and bonding path for the antenna installation.
- Route the full 18-foot coax away from heat, moving parts and sharp edges, protecting it at pass-through points.
- Adjust the antenna and verify SWR on your intended operating frequencies before transmitting.
- Complete radio power wiring and mounting for your vehicle. Installation labor and vehicle-specific adapters are not included.
The factory microphone supplied with the radio remains included. This package does not add the audio combo's external speaker or extra microphone.
Amateur Radio Operation
The SS-88HL is a 10-meter amateur radio, not a license-free CB radio. Transmitting requires the appropriate amateur radio license. Use only frequencies and modes permitted by your license.
Pro Tune and Alignment
Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.
Other SS-88HL Options
Choose the SS-88HL radio by itself or the SuperStar SS-88HL Audio Combo with DRX-9010 Speaker and Extra Mic. Browse all SuperStar 10-meter radios and packages.
Frequently Asked Questions
What is included in the SS-88HL truck-install combo?
The package includes one SuperStar SS-88HL radio, one Stryker SR-A10 antenna, one Driver Extreme DRX-3402 mirror mount, and one Driver Extreme DRX-1518 18-foot M213 coax cable. The factory microphone supplied with the radio stays included.
Is the SR-A10 suitable for 10-meter operation?
Yes. The SR-A10 supports 10-meter amateur use. Install it correctly and adjust the antenna for your intended operating frequencies before transmitting.
How long is the included coax cable?
This package includes the Driver Extreme DRX-1518, an 18-foot M213 coax cable.
Will the mirror mount fit every truck?
No single mirror mount fits every vehicle. Check mirror-arm dimensions, mounting clearance and the available grounding or bonding path before installation.
Is installation included with the truck-install combo?
No. This is an equipment package, not an installation service. Radio wiring, antenna mounting, bonding, coax routing and SWR adjustment must be completed for your vehicle.
Does this package include the audio combo's speaker and extra microphone?
No. The truck-install package includes the radio, antenna, mount and coax, plus the factory microphone supplied with the radio. The DRX-9010 speaker and extra DRX-6560 microphone are not included.
Do I need a license to transmit with this package?
Yes. The SS-88HL is a 10-meter amateur radio, not a license-free CB radio. Operate only on frequencies and modes permitted by your amateur radio license.
