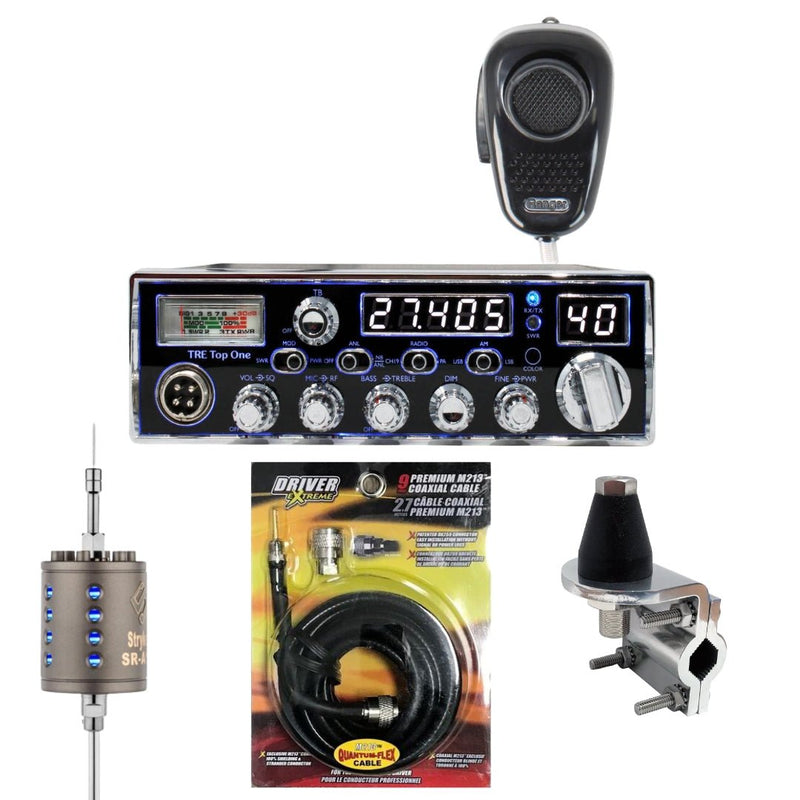

Texas Ranger TRE Top One + Stryker SR-A10 Antenna + DRX-3402 Mirror Mount + DRX-1518 Premium Coax — Heavy-Duty Truck Install Combo

A heavy-duty truck-install bundle for drivers who want a permanent, high-efficiency mobile CB setup on a work truck, semi, or heavy pickup. This combo pairs the Texas Ranger TRE Top One AM/SSB CB radio with the Stryker SR-A10 fiberglass antenna, the DRX-3402 Driver Extreme Magnum heavy-duty mirror mount, and 18 feet of DRX-1518 M213 Quantum-Flex premium double-shielded coax — a matched hardware kit built to hold up in over-the-road service.

The pairing is intentional: the SR-A10 is a 4-foot 6-gauge silver-plated fiberglass antenna rated to 10,000 watts, so it has generous power headroom over the Top One's 4 W AM / 12 W PEP SSB output — the reserve capacity keeps the radiator cool and efficient over long transmit cycles. The DRX-3402 is built for exactly this class of antenna, with a 2.5″-wide, .250″-thick extruded-aluminum body and Square-Lock stainless hardware that resists the vibration a fiberglass whip transmits into a truck mirror bracket. The DRX-1518 is 96% tinned-copper braid over 100% aluminum foil in an M213 double-shielded jacket — low loss and quiet on receive, which matters more at 12 W PEP than most drivers realize.

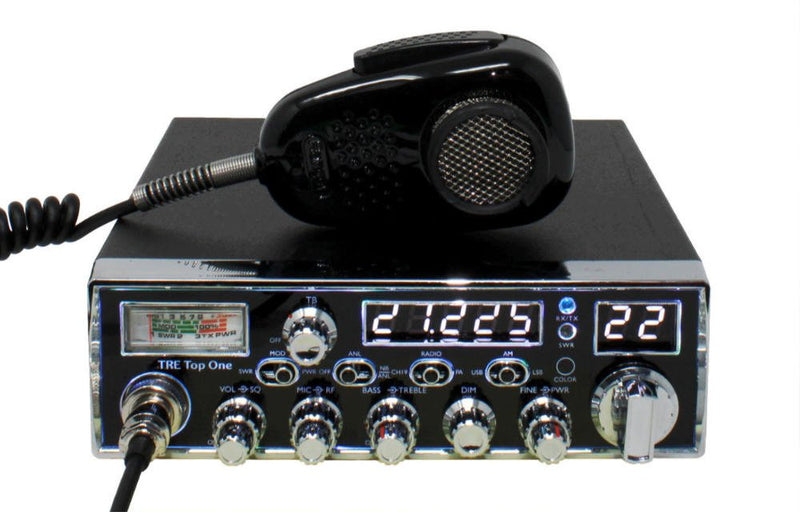

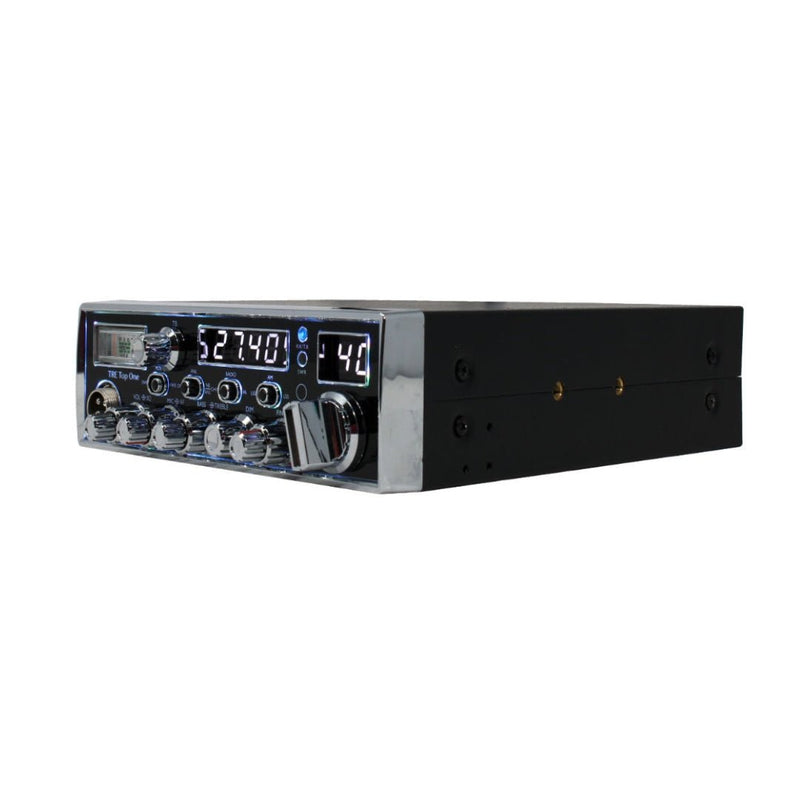

Texas Ranger TRE Top One AM/SSB CB Radio

• Compact AM/SSB CB radio — fits standard dash cubbies and overhead consoles
• 40 channels, 26.965–27.405 MHz, AM/USB/LSB modes plus PA
• PLL synthesis, ±0.001% frequency stability, white LED channel display and 6-digit frequency counter
• 4W AM / 12W PEP SSB (FCC Part 95 legal)
• 7-color touch-select faceplate LEDs, dimmer control
• Front-panel white meter for SWR, modulation, and power
• Variable RF power output, RF gain, mic gain
• Variable bass/treble receive tone control
• Adjustable talkback, NB/ANL, high-SWR warning light
• PA / radio / instant channel 19 switch

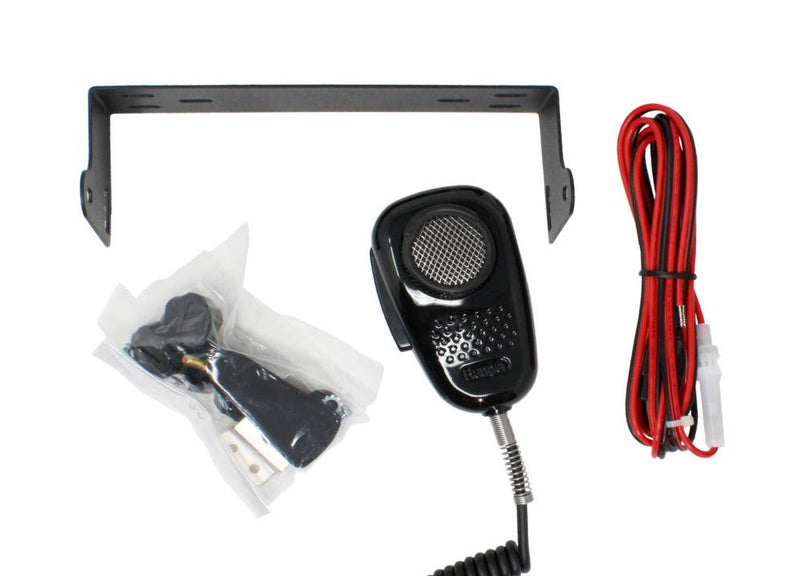

• 4-pin front microphone jack, Ranger SRA198 noise-cancelling dynamic mic included

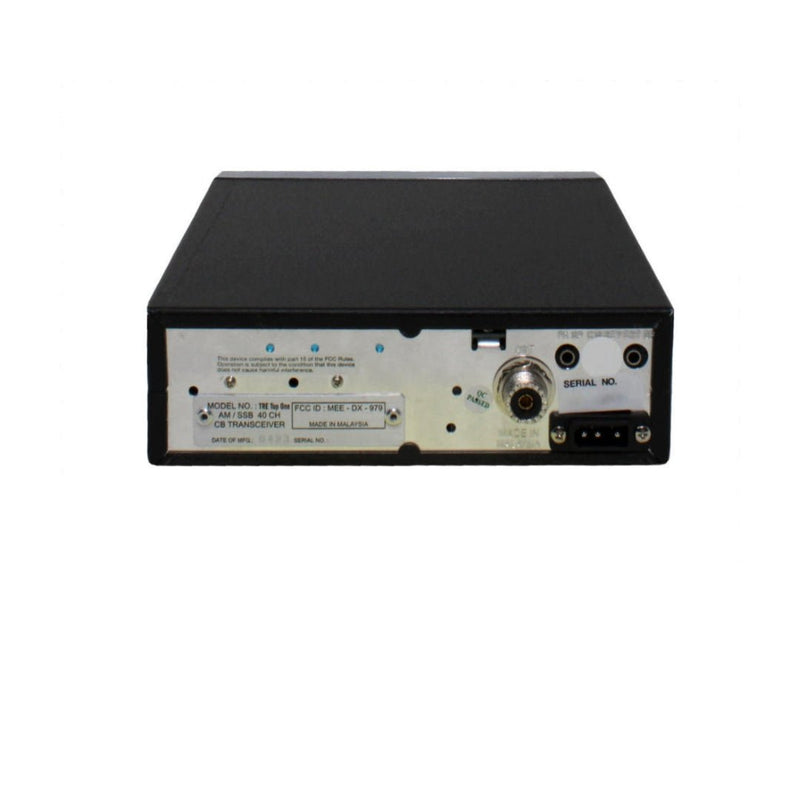

• SO-239 antenna, 13.8 VDC, 7.25″ W × 9″ D × 2.25″ H, 3.55 lb
• Mounting bracket and power cord included
• Ranger USA factory warranty

Stryker SR-A10 Fiberglass CB / 10-Meter Antenna

• Modeled after the U.S. Air Force Thunderbolt II — 4-foot fiberglass mobile antenna
• 6-gauge solid copper radiator coated in 100% silver plate for low resistive loss
• Rated to handle up to 10,000 watts — massive headroom over the Top One's 12 W PEP output
• High-Q coil for tight tuning across CB and low 10-meter
• Double-wall coil cover in high-impact Mobay plastic for weather and impact protection
• 10″ and 20″ stainless steel shafts for adjustable height
• 49″ stainless steel replaceable whip
• Reduced static interference on receive
• 2-year factory warranty (bulk / no retail packaging)

DRX-3402 Driver Extreme Magnum Heavy-Duty Antenna Mirror Mount

• Extra-large 2.50″-wide bracket, .250″-thick aircraft-grade extruded aluminum — sized for the SR-A10 and other large fiberglass antennas
• Driver Extreme exclusive Square-Lock hardware — one-wrench install, no chance of the bolt spinning during tightening
• Custom stainless-steel carriage bolts with an extended square shank that seats into the bracket
• Stainless K-Lock nuts with encapsulated lock washers — no lost washers on install
• Proprietary DX239 heavy-duty stud rated for full-size mobile antennas
• Threaded female nut in stainless, encased in ABS for insulation and support
• Stainless-steel center stud inside a 1″ plated-aluminum hex base

DRX-1518 Driver Extreme 18-Foot Premium M213 Coax

• 18 feet of M213 Quantum-Flex double-shielded coax with PL-259 connectors
• 50 Ω impedance for a matched feed to the SR-A10 and the Top One's SO-239 antenna port
• 96% tinned-copper braided shield
• Free-floating 100% aluminum foil shield — quiet on receive, low RF leakage
• Ultra-low signal loss vs. standard RG8X at 27 MHz — measurable on transmit power at the antenna feed point
• Right-sized for a mirror-mount-to-under-dash run in a full-size pickup or Class 8 tractor

Install and tuning

SWR should be verified at antenna installation. The SR-A10 tunes with a threaded tip that slides on the 49″ stainless whip — trim in small increments while checking SWR across channels 1, 20, and 40 with an inline meter or antenna analyzer. Once you have a clean match (1.1:1 to 1.3:1 is a realistic real-world target on a heavy pickup mirror mount), lock the tip and route the DRX-1518 cleanly away from ignition wiring, alternator leads, and spark plug wires. Ground the mirror bracket to bare metal — a poor ground kills SWR even with the antenna cut correctly.

The DRX-3402 is designed for exactly this class of antenna. If you're mounting to a plastic-clad mirror stem or a hollow bracket, add a bonding strap between the mount and vehicle chassis to give the SR-A10's coil a proper ground plane reference.

Buy the components separately

Prefer to build the kit piece by piece or already own one of these components? Every piece is available on its own:

• Texas Ranger TRE Top One AM/SSB CB Radio
• Stryker SR-A10 Fiberglass CB / 10-Meter Antenna
• DRX-3402 Driver Extreme Magnum Heavy-Duty Antenna Mirror Mount
• DRX-1518 Driver Extreme 18-Foot Premium M213 Coax

Recommended add-on

Pro Tune and Alignment — don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.

Licensing

CB radio operation in the United States falls under FCC Part 95 rules and does not require a license. All 40 channels of the Top One operate at the FCC-legal 4 W AM / 12 W PEP SSB power levels this radio is rated for. See the FCC personal radio services page for current CB rules.

Warranty

The TRE Top One is covered by Ranger USA's factory warranty — register at rangerusa.com/warranty-information or call 619-271-4035. CB Radio Supply does not offer an in-house warranty on the TRE Top One, and all Top One sales are final. The Stryker SR-A10 antenna carries a 2-year factory warranty. The DRX-3402 mount and DRX-1518 coax are covered by Driver Extreme's manufacturer warranty.

Questions about compatibility, licensing, or install? Contact CB Radio Supply — we work with Ranger USA, Stryker, and Driver Extreme dealers every day.
