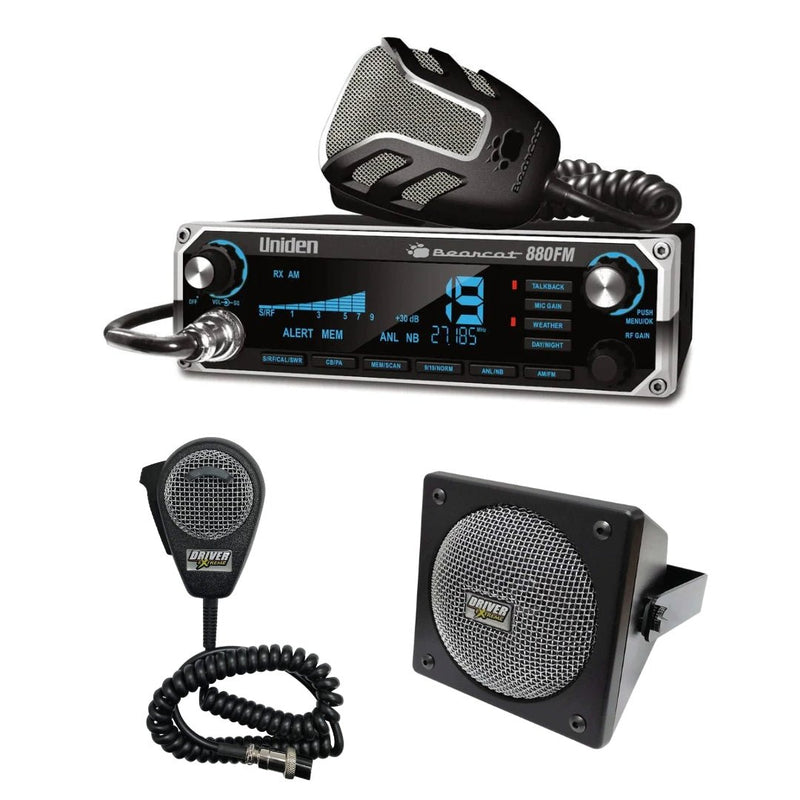

Uniden Bearcat 880FM + DRX-9010 Speaker & DRX-6560 Microphone Combo
Choose this Bearcat 880FM audio combo when you already have a compatible CB antenna system and want a separate receive speaker plus a Driver Extreme noise-cancelling microphone. It pairs the AM/FM radio with the DRX-9010 speaker and DRX-6560 dynamic microphone.
Microphone connection: The DRX-6560 is a four-pin microphone. Connect it through the six-to-four-pin adapter included in the Bearcat 880FM radio box; it does not connect directly to the radio's six-pin socket.
The Uniden Bearcat 880FM provides 40-channel AM/FM CB operation, seven NOAA weather channels, a seven-color display, RF gain, microphone gain, built-in talkback, and an SWR meter with calibration. Both stations must use the same CB channel and mode to communicate.
Included components
| Component | Quantity | What it provides |
|---|---|---|
| Uniden Bearcat 880FM | 1 | AM/FM CB radio with standard six-pin microphone and six-to-four-pin adapter |
| Driver Extreme DRX-9010 speaker | 1 | External receive speaker with mounting bracket and detachable 10-foot cable |
| Driver Extreme DRX-6560 microphone | 1 | Four-pin noise-cancelling dynamic microphone with 9-foot coiled cord |
The radio's standard power cord and mounting hardware are included. The microphone adapter is part of the radio's standard package, not an extra separately listed bundle component.
Setting up the audio accessories
Connect the DRX-9010 to the EXT. SP. jack using its supplied speaker cable. The radio then routes received audio to the external speaker instead of the internal speaker.
The DRX-6560 uses standard Cobra-style four-pin wiring and needs no battery. Use the included Uniden adapter and adjust the radio's microphone gain and talkback to suit your setup. An antenna, antenna mount, and antenna coax are not included in this audio package.
Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.
Other Bearcat 880FM packages
- Bearcat 880FM radio only
- Virginia magnetic-mount starter combo
- Stryker SR-A10 mirror-mount truck combo
- Hustler 102-inch whip with RG8X installation kit
- Hustler 102-inch whip with Driver Extreme mirror mount and M213 coax
Frequently asked questions
Does the four-pin DRX-6560 plug directly into the radio?
No. The Bearcat 880FM has a six-pin microphone socket. Use the six-to-four-pin adapter supplied with the radio to connect the DRX-6560.
Is the microphone adapter included?
Yes. Uniden lists the six-to-four-pin adapter in the Bearcat 880FM standard package. It is included through the radio component rather than as a separate bundle item.
Do I still receive the radio's standard microphone?
Yes. The radio's standard six-pin microphone remains included. The DRX-6560 is an additional microphone supplied in this combo.
Does the DRX-6560 need a battery?
No. It is a dynamic microphone and does not require a battery.
Which jack should I use for the DRX-9010 speaker?
Use the EXT. SP. external-speaker jack, not the PA speaker jack. Connecting an external speaker disables the radio's internal speaker.
Is an antenna included in this combo?
No. This is a radio and audio-accessory package. You will need a compatible installed CB antenna system before transmitting.
