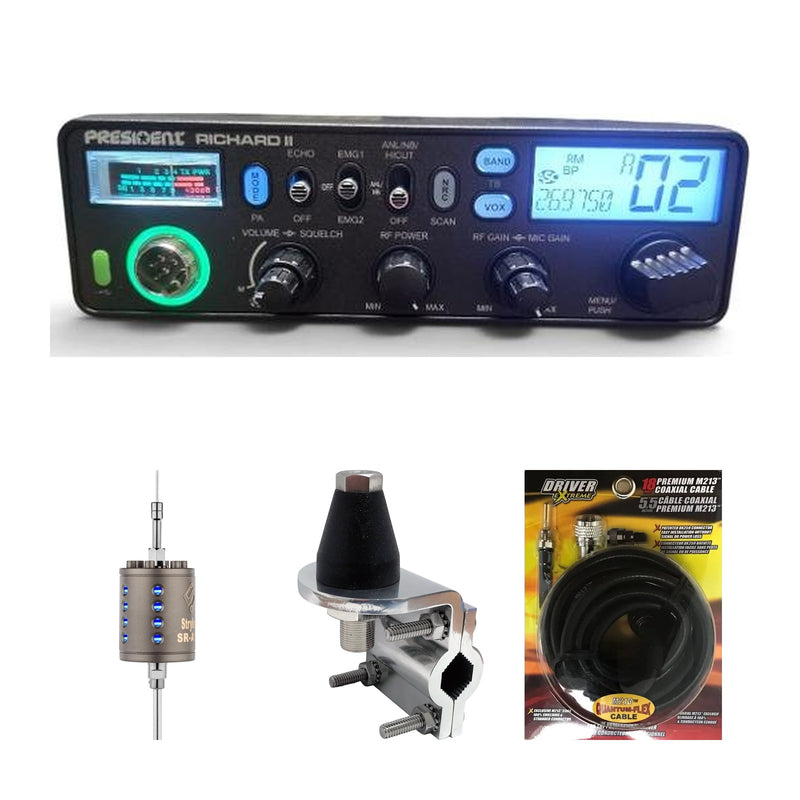

President Richard II 10-Meter Truck Combo with SR-A10 Antenna
The President Richard II truck-install combo pairs the AM/FM amateur radio with a Stryker SR-A10 antenna, Driver Extreme DRX-3402 mirror mount and DRX-1518 18-foot M213 coax. This package is configured for 10-meter operation; the supplied antenna is not specified for the radio's 12-meter band.
Included components
| Component | Quantity |
|---|---|
| President Richard II AM/FM Amateur Radio | 1 |
| Stryker SR-A10 Antenna | 1 |
| Driver Extreme DRX-3402 Mirror Mount | 1 |
| Driver Extreme DRX-1518 18-Foot M213 Coax | 1 |
Antenna system and installation
- Frequency coverage: Stryker specifies the SR-A10 for 26–30 MHz, encompassing the Richard II's 28.000–29.700 MHz 10-meter coverage. Adjust the antenna for the frequencies you will actually use.
- Mounting: The SR-A10 uses a 3/8-24 connection. Check the DRX-3402 mounting arrangement against your vehicle's mirror support.
- Coax: The DRX-1518 provides an 18-foot M213 cable; plan its route without sharp bends or pinch points.
- SWR: Install, ground and adjust the antenna system, then check SWR before transmitting.
The radio also covers 24.890–24.990 MHz, but the supplied SR-A10 is not specified for that 12-meter range. Use a different, appropriately matched antenna system for 12-meter operation.
The radio's factory microphone is included. No extra DIGIMIKE, BT MIKE or external speaker is added by this truck package.
Richard II radio features
- AM/FM operation: 10-meter and 12-meter amateur coverage; no SSB.
- Manufacturer-listed output: 13W AM carrier, approximately 50W PEP AM and 40W FM.
- Audio controls: Adjustable RF power, microphone gain, talkback and echo.
- Noise reduction: Independently adjustable five-level transmit and receive NRC.
- Operating aids: Built-in SWR measurement, ASC/manual squelch, frequency display and front USB-C charging.
- Manufacturer dimensions: 7.283 W × 7.480 D × 2.165 H inches / 185 × 190 × 55 mm.
Check mounting clearance and power requirements before installation. The radio requires a suitable 13.8V DC supply and must not be connected directly to 24V.
Compare Richard II packages
- Richard II radio only: Choose the radio without the additional package components.
- Richard II + DIGIMIKE: Radio with a DIGIMIKE.
- Richard II + BT MIKE: Radio with a BT MIKE.
- Richard II Audio Combo: Radio with a DIGIMIKE and external speaker.
Don't forget to add the Pro tune and alignment option at checkout so that your radio is professionally bench-tuned for best performance per the manufacturer's service manual.
Frequently asked questions
What is included in this package?
One President Richard II AM/FM Amateur Radio, one Stryker SR-A10 Antenna, one Driver Extreme DRX-3402 Mirror Mount, one Driver Extreme DRX-1518 18-Foot M213 Coax. The radio's factory microphone remains included.
Does this package replace the factory microphone?
No. This package uses the radio's included factory microphone and does not add an extra microphone.
What license do I need?
In the United States, AM/FM voice operation on these amateur bands requires General-class privileges or higher, or an existing Advanced-class license, on permitted frequencies and modes. Technician 10-meter voice privileges are SSB-only; the Richard II does not have SSB.
Does the Richard II have single sideband?
No. It operates in AM and FM, without USB or LSB modes.
What are the radio's power figures?
President lists 13W AM carrier, approximately 50W PEP AM and 40W FM. These are separate mode-specific ratings.
Does the package include an antenna system?
Yes. The truck package includes the SR-A10, DRX-3402 mount and DRX-1518 18-foot coax. The antenna needs proper installation and adjustment before transmitting.
Can the supplied antenna be used on 12 meters?
The SR-A10 is specified for 26–30 MHz, not the Richard II's 24.890–24.990 MHz 12-meter coverage. This package's antenna system is for 10-meter use; choose a different matched antenna system for 12 meters.
